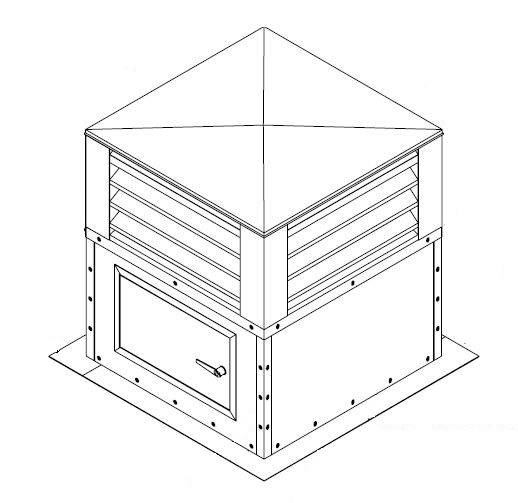

| Model: | CSVP45C |
| Filter: | CSVP45C32,CSVP45C38,CSVP45C44 |
| Size: | 38" X 38" X 18"
Sits on a Curb 24" or 36" High |
| Material: | .080" Thick Extruded Aluminum 6063-T52/T6 Alloy |
| Corner: | Post .080" Thick Formed Aluminum |
| Roof: | Removable .060" Thick Aluminum |
| Roof Insulation: | ½" Thick Rigid Insulation on Underside of Roof |
| Roof Opening: | 28" X 28" Minimum to 38" X 38" Maximum |
| Curb: | 12 ga. Galvanneal, Galvanized Steel or ⅛ " Thick Aluminum |
| Louver: | Model A465
30" X 18" Qty of 4 Required
Free Area of 6.54ft2 Total |
| Control Damper: | Model AC525/AC526 26" X 26"
Model AC1/2 26" X 26"
Internally Mounted 120V Electric Actuator |
| Glass: | ⅛ " Annealed Glass |
| Screen: | .051" Flattened Bird Screen
Variety of Bird and Insect Screen Options |
| Finish: | Mill
Variety of Baked Enamel, Kynar and Anodize Options |
