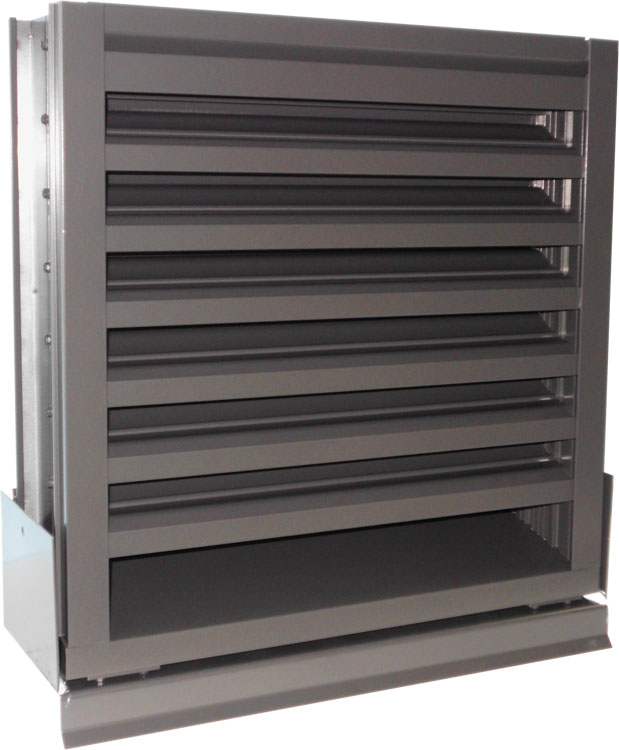

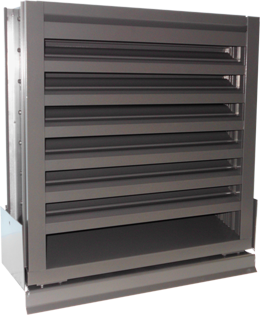

5" Deep Chevron Drainable Blade Wind Driven Rain Resistant Sightproof Louver

A Division of MESTEK, Inc.

Explore our products with
the Product Pro filtering system.

Model:	X5DD
Filter:	X5DD
Minimum Size:	12" x 12"
Maximum Size:	40 ft²
Frame Depth:	5" Deep
Frame Material:	.081" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.060" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Orientation:	Horizontal
Blade Type:	Chevron Drainable
Blade Angle:	N/A
Continuous Line:	No
Face:	Head and Blades in Jambs; Sill Contains Jambs
Screen Options:	Standard Bird Screen: ½" Expanded Aluminum Bird Screen; Variety of Bird and Insect Screen Options
Free Area:	44.3% (7.08 ft² for 48" x 48")
Pressure Drop:	0.21 in. w.g. at 1000 fpm and 8850 scfm
AMCA:	Certified for Air Performance, Water Penetration, and Wind-Driven Rain
