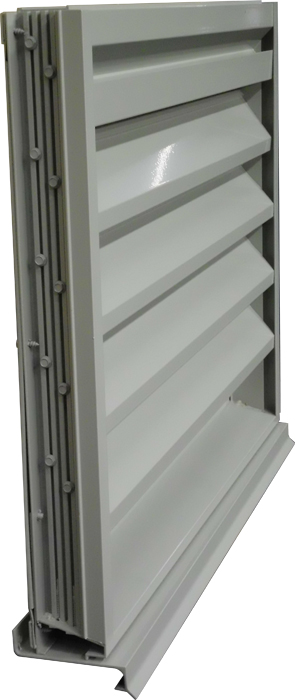

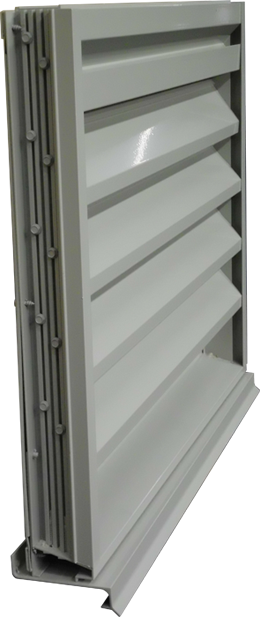

2" Deep, 45° Baffle Blade Extruded Aluminum Curtain Wall Louver

A Division of MESTEK, Inc.

Explore our products with
the Product Pro filtering system.

Model:	X2J4
Filter:	X2J4
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	2" Deep
Frame Material:	.063" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.063" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Orientation:	Horizontal
Blade Type:	Baffle
Blade Angle:	45°
Continuous Line:	No
Face:	Full Sill with Blades and Head Contained in Jambs
Screen Options:	Standard Bird Screen: Standard Bird Screen: ½" Flattened Aluminum, .051" Thick Variety of Bird and Insect Screen Options
Free Area:	45% (7.23 ft² for 48" x 48")
Water Penetration:	700 fpm
Pressure Drop:	.085" in. w.g. at 748 fpm and 5408 scfm
AMCA:	Certified for Air Performance and Water Penetration
