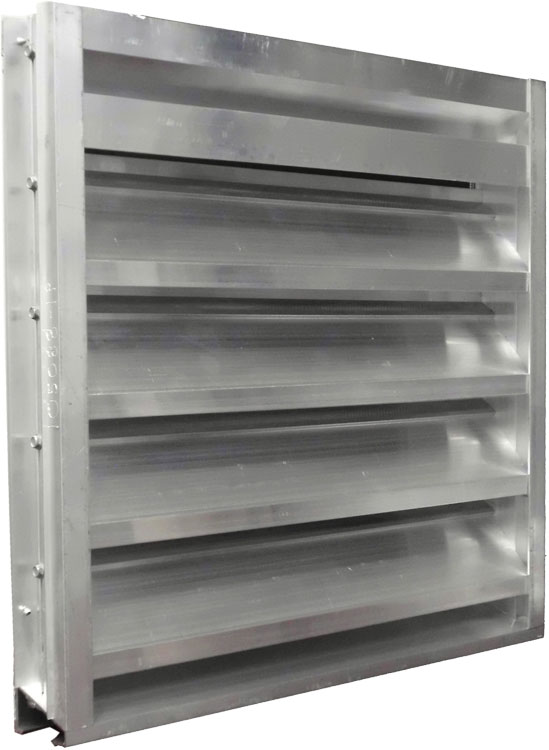

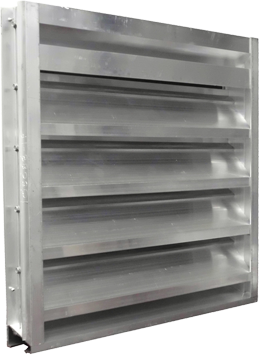

1½" Deep, 30° Baffle Blade Louver

Home

Louvers

Dampers

Doors

Rooftop Products

Model:	X1K4
Filter:	X1K4
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	1½" Deep
Frame Material:	.063" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.063" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Orientation:	Horizontal
Blade Type:	Baffle
Blade Angle:	30°
Continuous Line:	No
Face:	All Surfaces Flush with Jambs, in Head and Sill
Screen Options:	Standard Bird Screen: ½" Flattened Aluminum, .051" Thick Variety of Bird and Insect Screen Options
Free Area:	46% (7.37 ft² for 48" x 48")
Water Penetration:	400 fpm
Pressure Drop:	.10" in. w.g. at 800 fpm and 5896 scfm
