Model: | X4K4 |
Filter: | X4K4 |
Minimum Size: | 12" x 12" |
Maximum Size: | 60" x 96" |
Frame Depth: | 4" Deep |
Frame Material: | .081" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Material: | .081" or .125" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Orientation: | Horizontal |

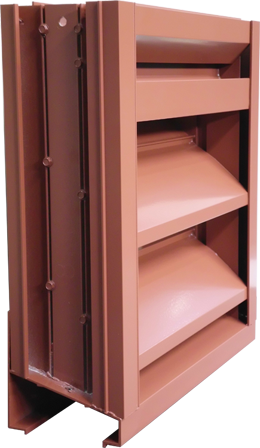

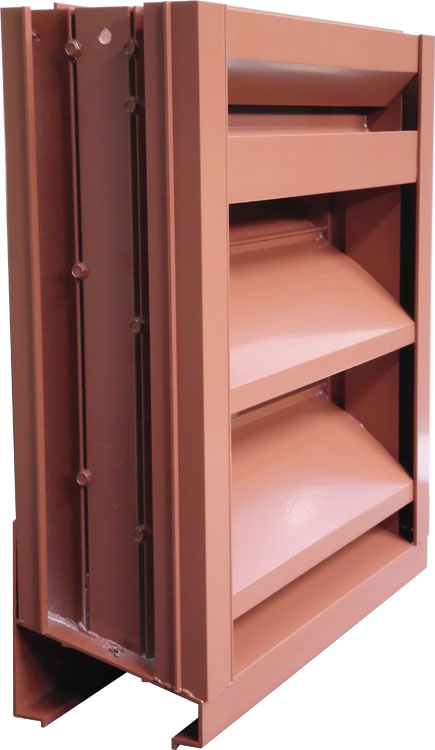

Blade Type: | Baffle |
Blade Angle: | 45° |
Continuous Line: | Optional |
Face: | Full Width Sill; Head and Blades Contained in Jamb |
Screen Options: | Standard Bird Screen: ½" Flattened Aluminum; .051" Thick Variety of Bird and Insect Screen Options |
Free Area: | 56% (9.02 ft2 for 48" x 48") |
Water Penetration: | 900 fpm |
Pressure Drop: | .125" in. w.g. at 932 fpm and 8407 scfm |
AMCA: | Certified for Air Performance and Water Penetration |
