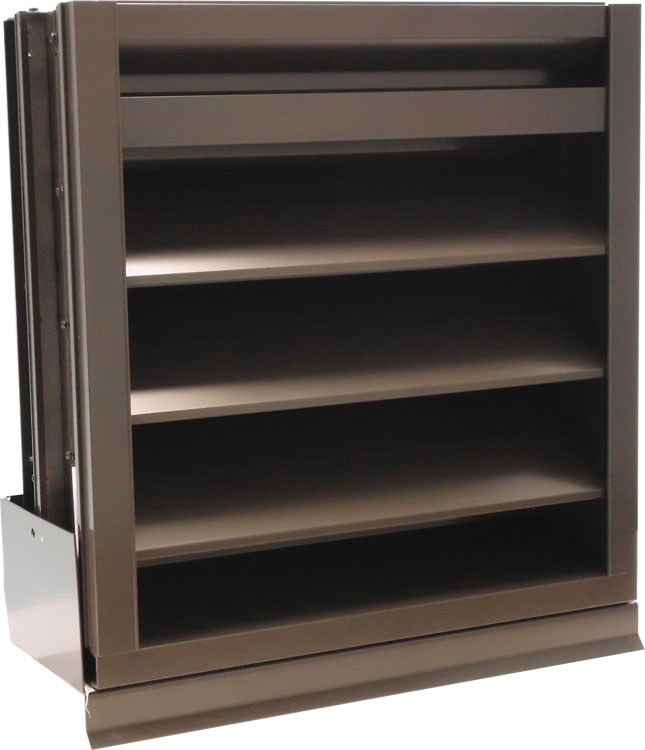

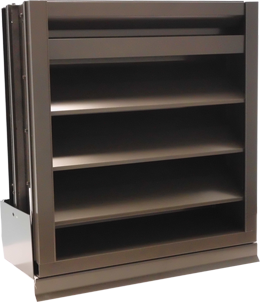

6" Deep Drainable Combination Stationary Wind Driven Rain Resistant Storm Louver

Quick Specs

Model:	X6S7
Filter:	X6S7
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	6" Deep (4" Exterior + 2" Interior)
Frame Material:	Extruded Aluminum 6063-T6/T52 Alloy: .081" Thick Exterior .063" Thick Interior
Blade Material:	Extruded Aluminum 6063-T6/T52 Alloy
Drain Sill Pan Material:	.060" Thick Formed Aluminum
Blade Orientation:	Horizontal
Blade Type:	37° Straight Blade (Exterior) Chevron Drainable (Interior)
Continuous Line:	Optional
Face:	Full Width Sill; Head and Blades Contained in Jamb
Screen Options:	Standard Bird Screen: ½" Expanded Aluminum Bird Screen; Variety of Bird and Insect Screen Options
Free Area:	44% (7.07 ft² for 48" x 48")
Pressure Drop:	0.097 in. w.g. at 800 fpm and scfm
AMCA:	Certified for Air Performance and Wind Driven Rain

*For additional options/configurations see spec sheet or contact the factory.
