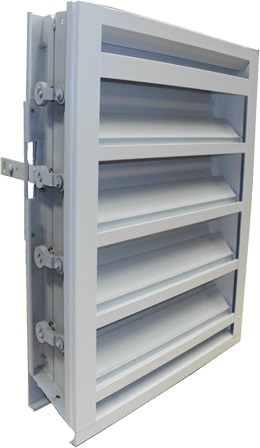

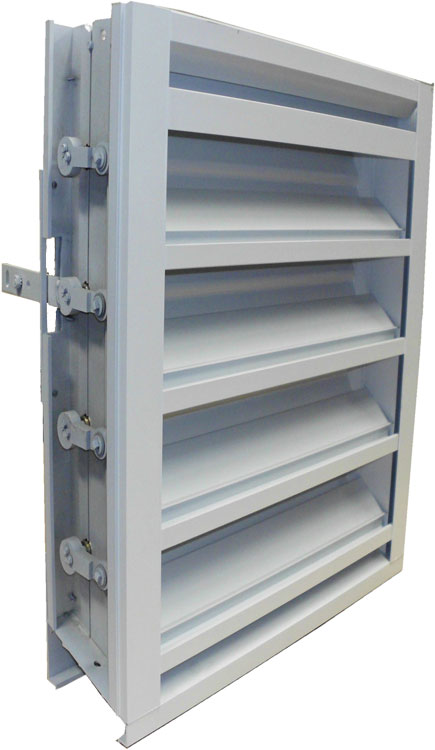

Model: | X4DDC |
Filter: | X4DDC |
Minimum Panel Size: | 12" x 12" |
Maximum Panel Size: | 48" x 96" |
Frame Depth: | 4" Deep |
Frame Material: | .080" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Stationary Blade: | .080" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Adjustable Blade: | .125" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Orientation: | Horizontal |
Blade Type: | Drainable |
Blade Angle: | Adjustable |
Operation: | Manual or Motorized |
Bearings: | Celcon |
Linkage: | Concealed in Frame |
Shafts: | .50" Diameter Aluminum "Pin-Lock" Rod |
Blade Seals: | Extruded Silicone Rubber |
Jamb Seals: | Stainless Steel |
Screen Options: | Bird Screen: ½" Flattened Aluminum.051" Thick Variety of Bird and Insect Screen Options |
Finish: | Mill |
Free Area: | 52% (8.36 ft2 for 48" x 48") |
Water Penetration: | 900 fpm |
Pressure Drop: | .14 in. w.g. at 1000 fpm and 8360 scfm |
AMCA: | Certified Air Performance and Water Penetration |
