Minimum Size: | 1" |
Maximum Size: | 2" |
Frame Type: | Hat Shaped, Channel |
Frame Material: | 10-14 ga. Steel |

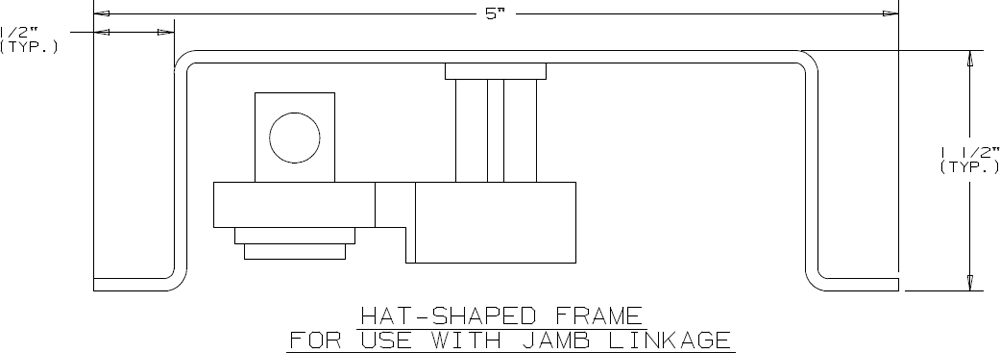

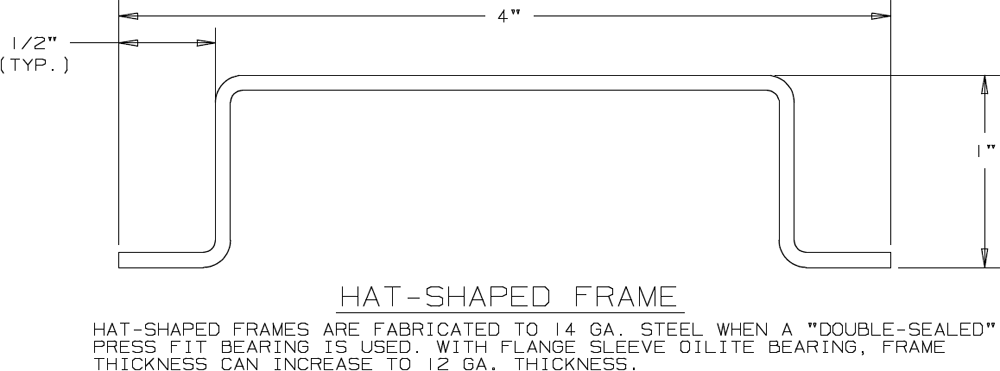

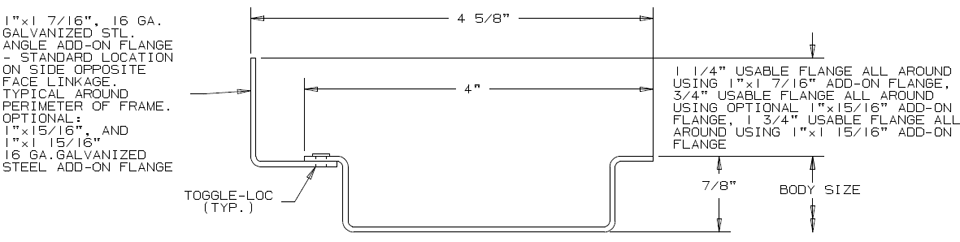

Hat-Shaped Frame
Hat-shaped frames are fabricated to 14 gauge steel when a "double-sealed" press fit bearing is used.With flange sleeve oilite bearings, frame thickness can increase to 12 gauge.

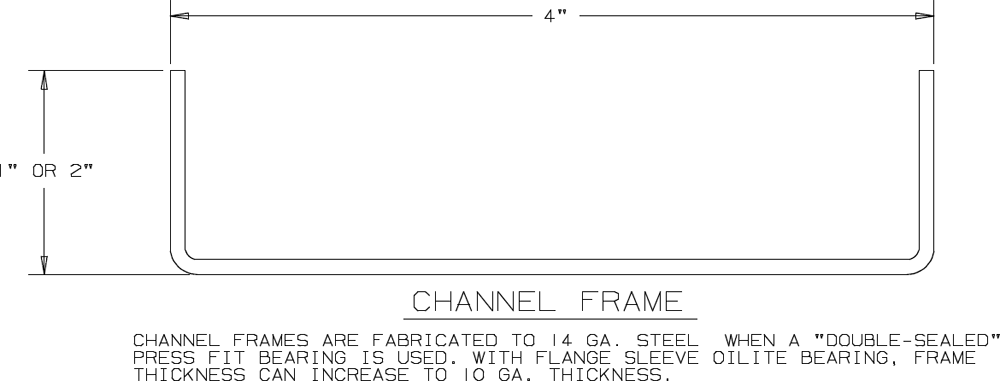

Channel Frame
Channel frames are fabricated to 14 gauge steel when a "double-sealed" press fit bearing is used.With flange sleeve oilite bearings, frame thickness can increase to 10 gauge.
