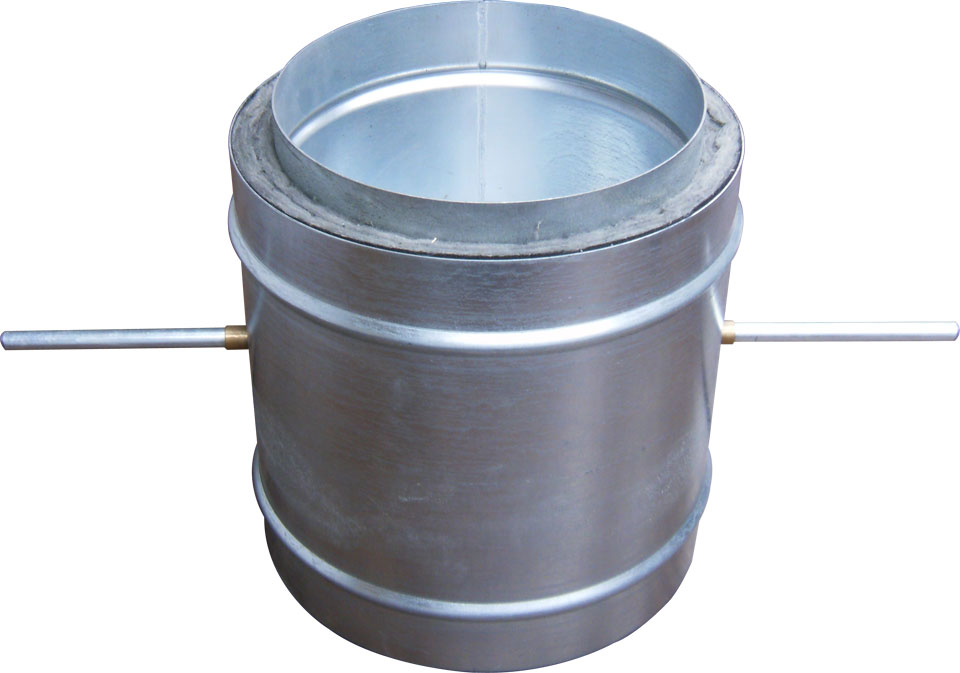

Round Single Blade Dual Wall Insulated Volume Control Damper

A Division of MESTEK, Inc.

Designed for insulated spiral duct.

Explore our products with
the Product Pro filtering system.

Model:	C260DW
Filter:	C260DW
Minimum Diameter:	4" Diameter Inner Sleeve 6" Diameter Outer Sleeve
Maximum Diameter:	36" Diameter Inner Sleeve 38" Diameter Outer Sleeve
Frame Depth:	5½"
Frame Type:	Dual Wall; Round
Frame Material:	20 Ga. - 16 Ga. Galvanized Steel
Blade Type:	Single Blade
Blade Material:	28 Ga. - 16 Ga. Galvanized Steel
Blade Seal:	None
Shaft:	½" or ¾" Diameter Plated Steel
Bearing:	Swaged Holes with Thrust Washer or Bronze Oilite
Operating Conditions:	3000 FPM
Controller:	Q-37 or Q-168 Hand Quadrant
Finish:	Mill
Max Velocity:	3000fpm
