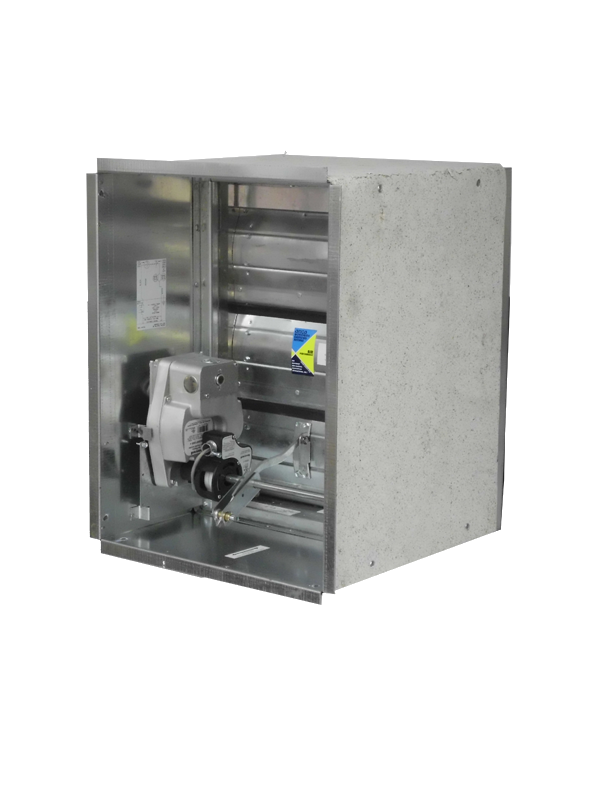

| Model: | CA1G/F |
| Filter: | CA1HD250,CA1HD350,CA1HE250,CA1HE350,CA1VF250,CA1VF350,CA1VG250,CA1VG350 |
| Depth: | 5½" |
| Orientation: | Vertical or Horizontal |
| Frame Material: | 16 ga. Galvanized Steel |
| Frame Type: | Hat Channel |
| Sleeve: | 20 ga. Galvanized Steel by 15" Long on 1½" Grille Clearance <>Or 17" Long on 3½"; Grille Clearance with 13/16;" Front Flange |
| Blade Material: | 20 ga. Double-Skinned Galvanized Steel (equal to 14 ga.) |
| Blade Type: | Airfoil |
| Blade Action: | Parallel |
| Blade Seals: | Silicone |
| Jamb Seals: | Stainless Steel |
| Bearings: | Oil Impregnated Bronze |
| Axles: | Square Plated Solid Steel Stub |
| Linkage: | Plated Steel Angle and Crank Plates with Stainless Steel Pivots
In-Jamb |
| Stops: | 18 ga. Galvanized at Head and Sill |
| Actuator: | Electric 120V, 24V or 230V with Heat Response Device (EHRD)
Pneumatic with Heat Response Device (PHRD)
Factory installed for Power-Open/Spring-Close (Fail Close) Operation
External Left Hand Mount Standard
Rigth Hand and/or Internal Mount Options |
| Finish: | Mill |
| Max Differential Pressure: | 4 in. w.g. |
| Max Velocity: | 2000fpm |
| Leakage Rating: | 4 cfm per ft2 Max at 1 in. w.g.
8 cfm per ft2 Max at 4 in. w.g. |
