Louvers

Sub Types

Stationary Louvers

The standard for intake and exhaust point protection. Fixed, stationary blade louvers in drainable and non-drainable variants.

Products 53

Adjustable / Combination Louvers

You don't always need a control damper for close-off. Adjustable and Combination louvers close at the opening without extra airflow equipment.

Products 27

Acoustical Louvers

Lower the volume on the world. Acoustical louvers attenuate noise carried on the airstream.

Products 7

Brick Vents

Brick vents keep air moving through masonry walls. Choose from standard or flanged frame models.

Products 2

Severe Weather Louvers

Built and tested for severe weather. This category includes wind driven rain louvers, FEMA 361 louvers, and AMCA 540-550 hurricane louvers.

Products 25

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products 120

Protect ventilation openings against severe weather, create perimeter fencing, lower the volume on ambient noise, or add straight lines to your designs. Those are just a few things our louvers can do.

Details

Products

X5CC

5" Deep Extruded Aluminum Horizontal Combination Drain Blade, "Wind Driven Rain Resistant" Louver

New

X5CC

Free Area %: 43%
Pressure Drop: .47 in. w.g. @ 1000 fpm
Water Penetration (fpm): 821 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Frame Shape: Rectangular
Pressure Drop: .47 in. w.g. @ 1000 fpm
Water Penetration (fpm): 821 (fpm)(FPM)

More Info

X6CC

6" Deep Extruded Aluminum Wind Driven Rain Resistant Louver

New

X6CC

Free Area %: 43.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .17 in. w.g. @ 1000 fpm

More Info

X7CC

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain and Impact Resistant Louver

New

X7CC

Free Area %: 42.4%
Pressure Drop: .022 in. w.g. @ 398 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .022 in. w.g. @ 398 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

A3S8

3" Deep Extruded Aluminum Vertical Chevron Blade Rain Resistant Storm Louver

AS38

Free Area %: 44%
Pressure Drop: .083 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .083 in. w.g. @ 1000 fpm

More Info

A6SD

6" Deep Extruded Aluminum Vertical Chevron Blade Rain Resistant Storm Louver

A6SD

Free Area %: 53%
Pressure Drop: .103 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .103 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

A8SB

8" Deep Extruded Aluminum Sand Louver

Free Area %: 27.56%
Pressure Drop: .65 in. w.g. @ 1250 fpm

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .65 in. w.g. @ 1250 fpm

More Info

A8VB

8" Deep Fixed Vertical Chevron Blade Hurricane Louver (Miami-Dade Certified)

A8VB

Free Area %: 29.31%
Pressure Drop: .3 in. w.g. @ 1250 fpm

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .3 in. w.g. @ 1250 fpm

More Info

ACA47

4" Deep 45° Acoustic Steel Acoustical Louver (High Frequency)

ACA47

Free Area %: 28.18%
Pressure Drop: .18 in. w.g. @ 1000 fpm
Water Penetration (fpm): 787 (fpm)

Material Options: Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Acoustical Blade
Pressure Drop: .18 in. w.g. @ 1000 fpm
Water Penetration (fpm): 787 (fpm)(FPM)

More Info

ACA47L

4" Deep 45° Acoustic Steel Acoustical Louver (Low Frequency)

ACA47L

Free Area %: 28.18%
Pressure Drop: .18 in. w.g. @ 1000 fpm
Water Penetration (fpm): 787 (fpm)

Material Options: Galvanized Steel
Blade Type: Acoustical Blade
Pressure Drop: .18 in. w.g. @ 1000 fpm
Water Penetration (fpm): 787 (fpm)(FPM)

More Info

ACA482-12

12" Deep Aluminum or Steel Acoustical Louver with 12" On Center Blade Spacing

ACA48212

Free Area %: 25%
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1057 (fpm)

Material Options: Extruded Aluminum 6063 Alloy, or Galvanized Steel
Blade Type: Acoustical Blade
Insulation: Accoustical
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1057 (fpm)(FPM)
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

More Info

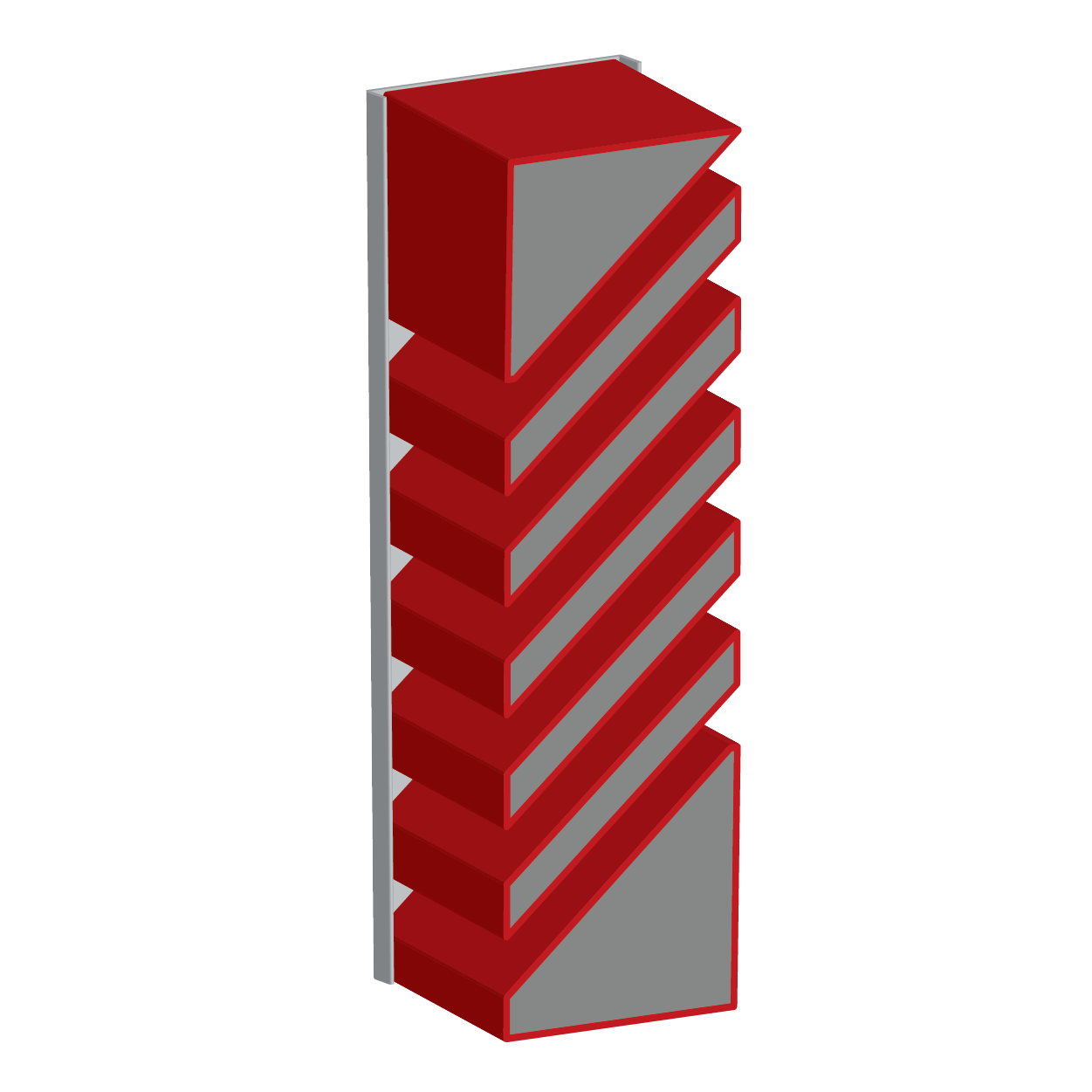

ACA482126

12" Deep Aluminum or Steel Acoustical Louver with 6" On Center Blade Spacing

ACA482126

Free Area %: 24.88%
Pressure Drop: .07 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1084 (fpm)

Material Options: Extruded Aluminum 6063 Alloy, or Galvanized Steel
Blade Type: Acoustical Blade
Insulation: Accoustical
Pressure Drop: .07 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1084 (fpm)(FPM)

More Info

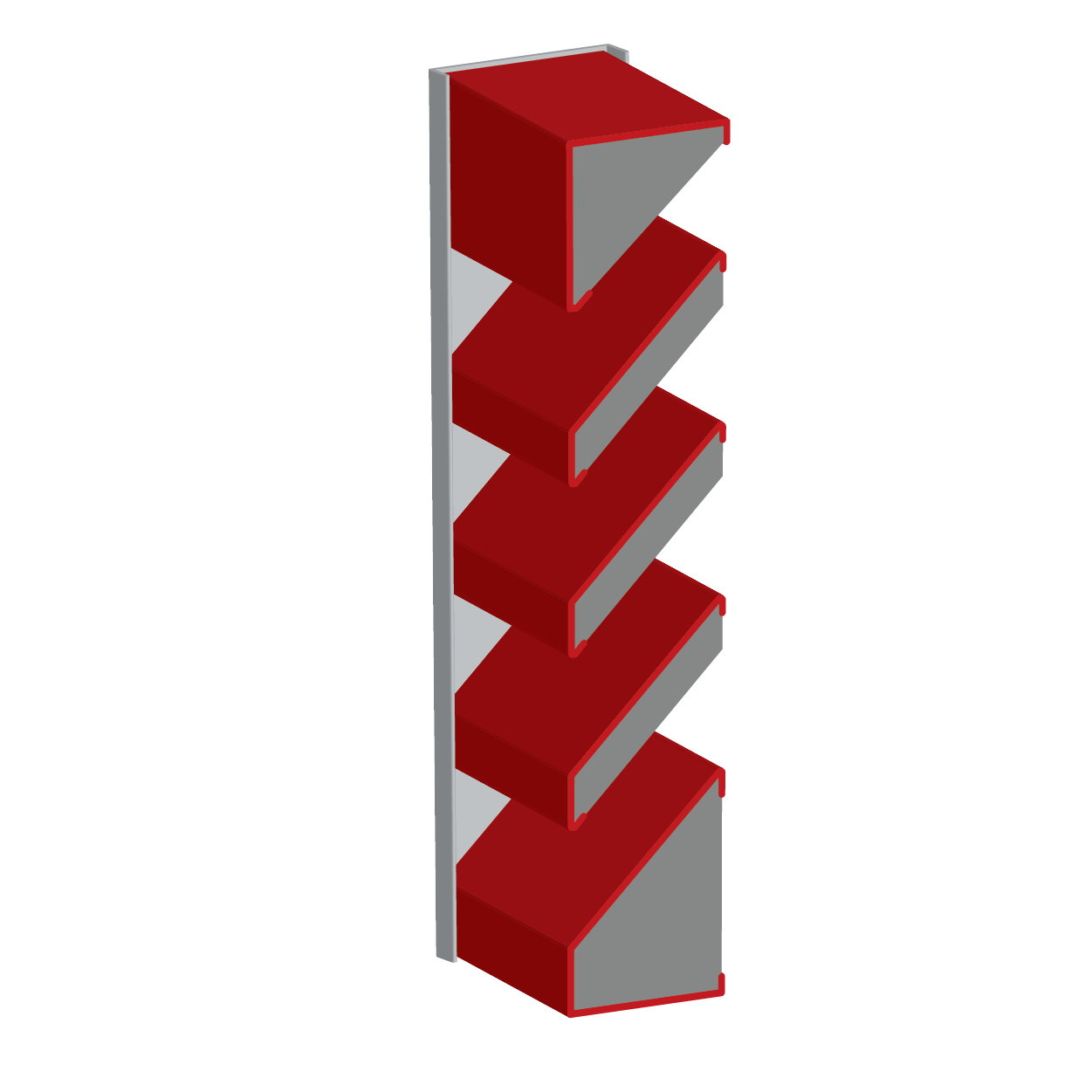

ACA482-66

6" Deep Aluminum or Steel Acoustical Louver with 6" On Center Blade Spacing

ACA48266

Free Area %: 26%
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 858 (fpm)

Material Options: Extruded Aluminum 6063 Alloy, or Galvanized Steel
Blade Type: Acoustical Blade
Insulation: Accoustical
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 858 (fpm)(FPM)

More Info

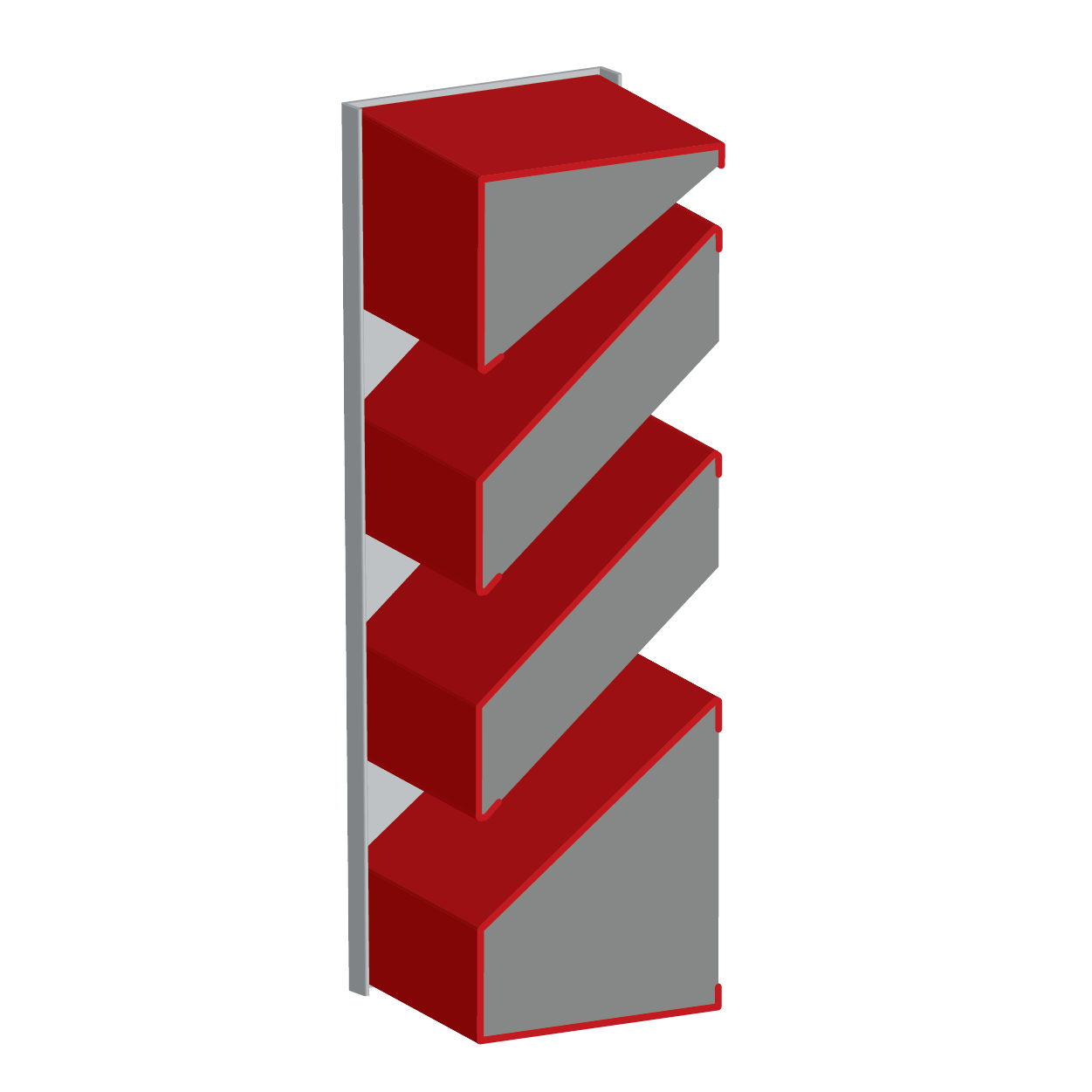

ACA482-88

8" Deep Aluminum or Steel Acoustical Louver with 8" On Center Blade Spacing

ACA48288

Free Area %: 25%
Pressure Drop: .085 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)

Material Options: Extruded Aluminum 6063 Alloy, or Galvanized Steel
Blade Type: Acoustical Blade
Insulation: Accoustical
Pressure Drop: .085 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)(FPM)

More Info

ACA73A

7" Deep Insulated Blade Combination Adjustable and Stationary Acoustical Steel Louver

ACA73A

Free Area %: 45.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)(FPM)

More Info

ALCF5

5.5" Deep Aluminum FEMA Louver

ALCF5

Free Area %: 49.3%
Pressure Drop: .35 in. w.g. @ 1000 fpm

Material Options: Structural Aluminum, or Rolled Aluminum
Blade Type: Chevron Blade
Pressure Drop: .35 in. w.g. @ 1000 fpm

More Info

AM1

Modular Extruded Aluminum Grille Screen

AM1

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

AM2

Horizontal Angular Blade Extruded Aluminum Grille Screen

AM2

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

AM2C

Horizontal Angular Blade Extruded Aluminum Continuous Line Grille Screen

AM2C

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

AM3C

Solar Angular Continuous Line Extruded Aluminum Grille Screen

AM3C

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

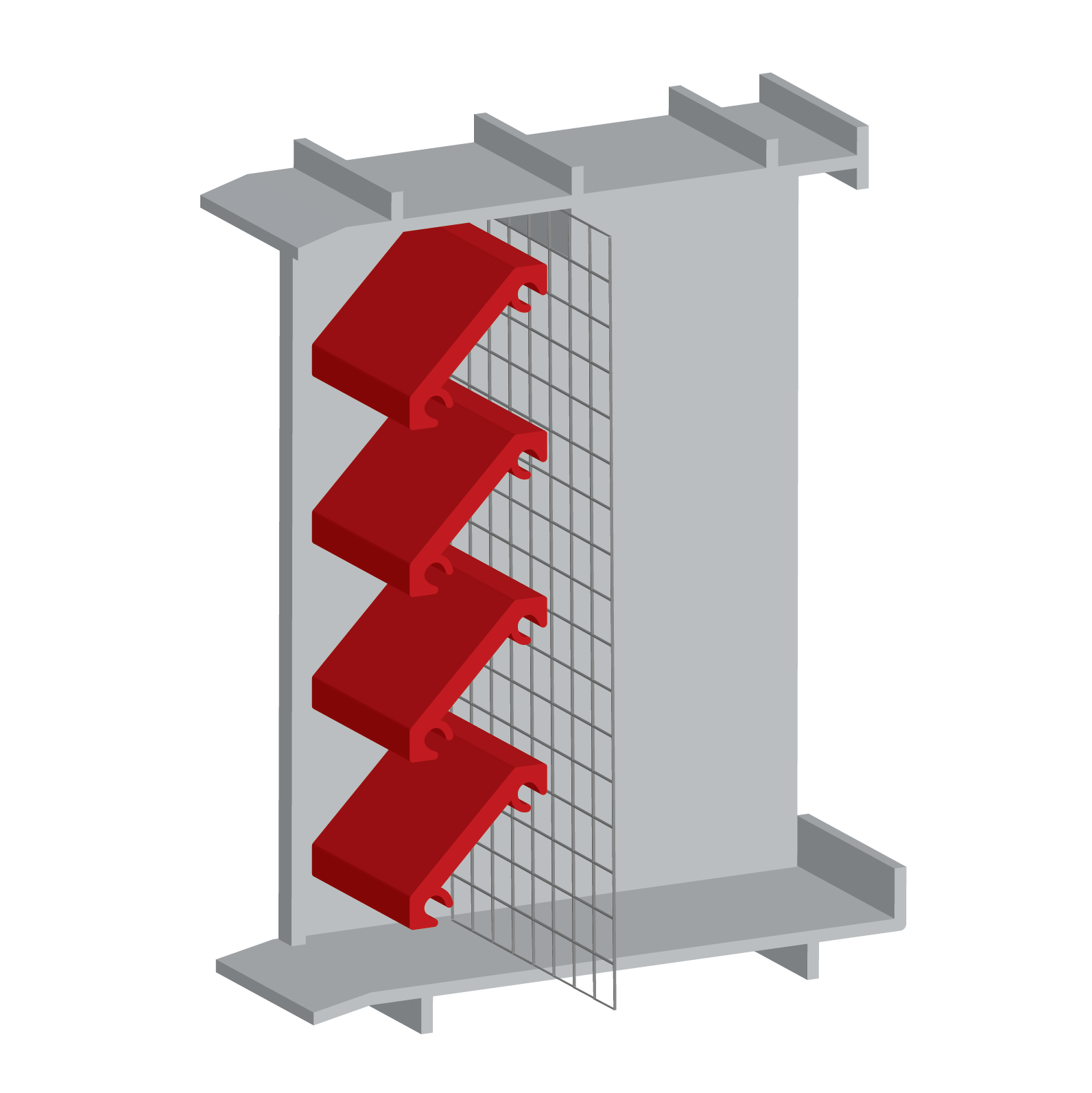

BV

Brick Vents with Standard Frames

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

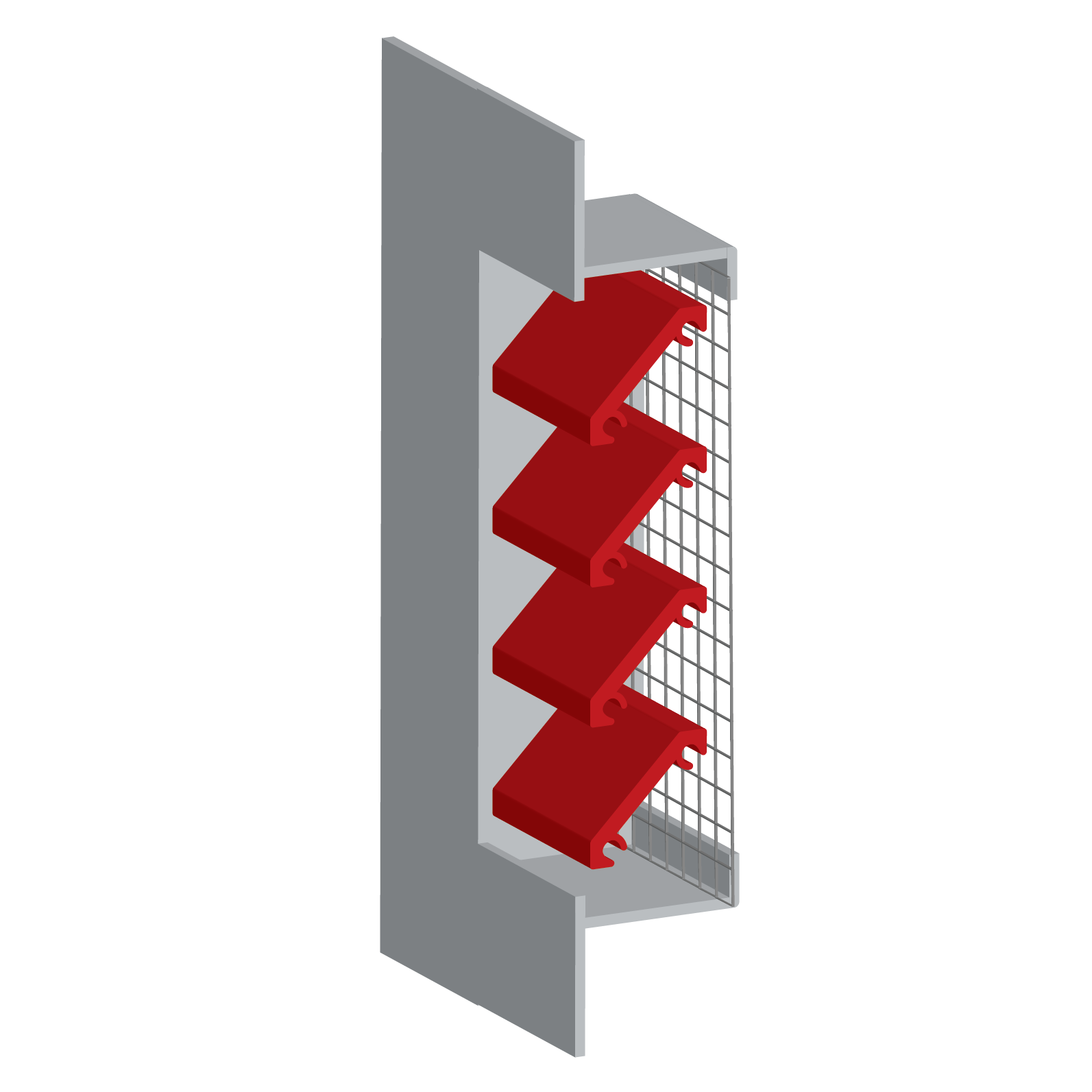

BV-F

Brick Vents with Flanged Frames

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Straight Blade

More Info

C11F

45° Stationary Blade Flanged Frame Door Louver

C11F

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

C677E

6" Deep 35° Combination Stationary and Adjustable Exhaust Louver

C677E

Free Area %: 52%

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

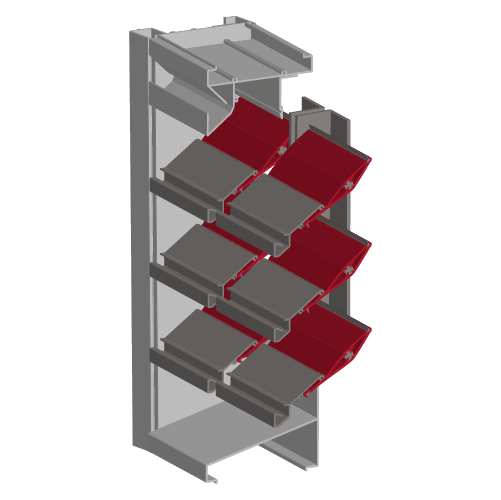

C680DAFC

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver w/ Concealed Actuator

C680DAFC

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

C680DC

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver with Concealed Mullion

C680DC

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

C681C

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver w/ Concealed Mullions

C681C

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

CA4DHP

4" Deep Horizontal Extruded Aluminum Drainable Baffle Blade Louver

CA4DHP

Free Area %: 61%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 909 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Blade Action: Parallel
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 909 (fpm)(FPM)

More Info

CA4SHP

4" Deep Horizontal Extruded Aluminum Baffle Blade Louver

CA4SHP

Free Area %: 60%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)(FPM)

More Info

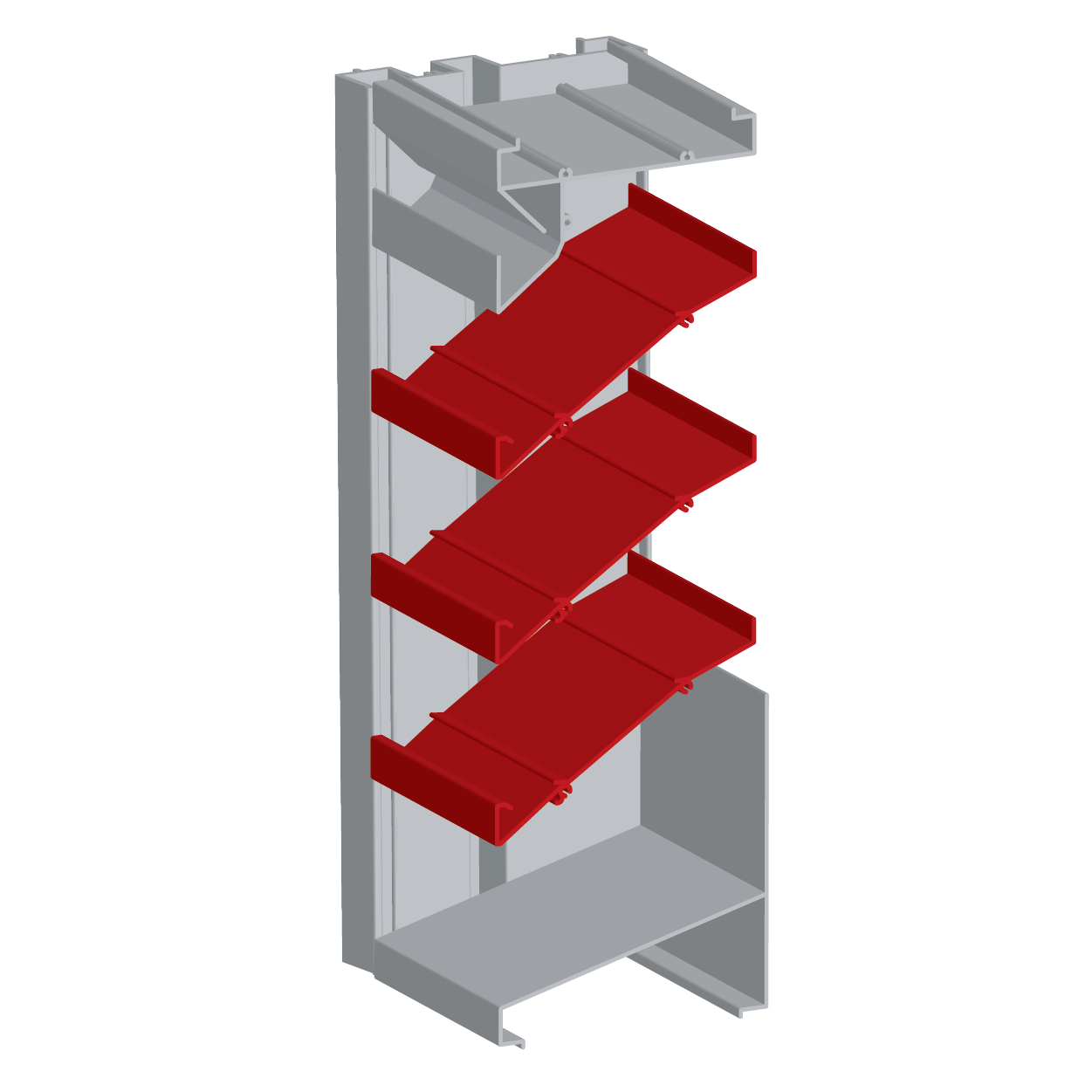

CA6DHP

6" Deep Extruded Aluminum Drainable Blade High Performance Louver

CA6DHP

Free Area %: 63%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)(FPM)

More Info

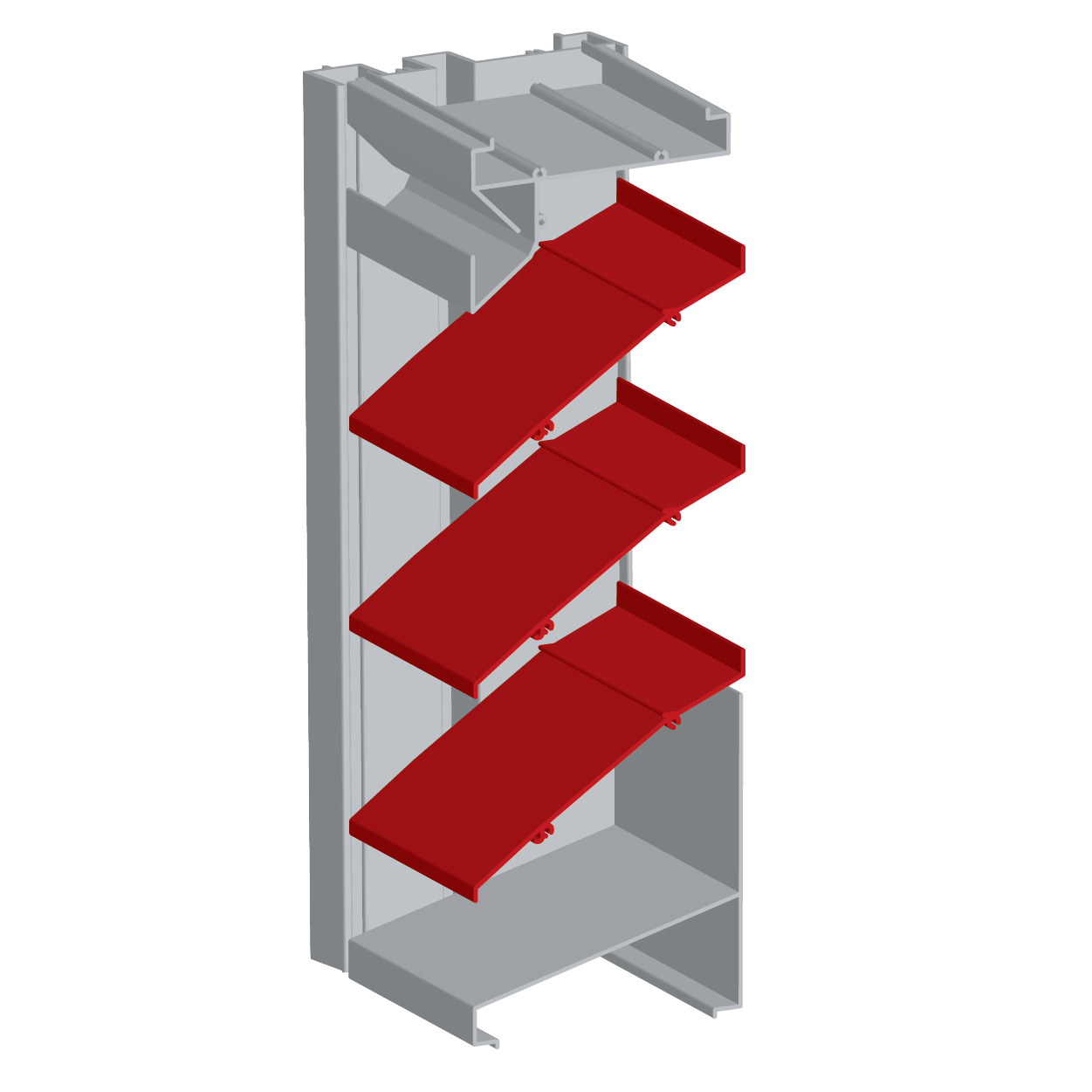

CA6SHP

6" Deep Extruded Aluminum Non-Drainable Blade High Performance Louver

CA6SHP

Free Area %: 61%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)(FPM)

More Info

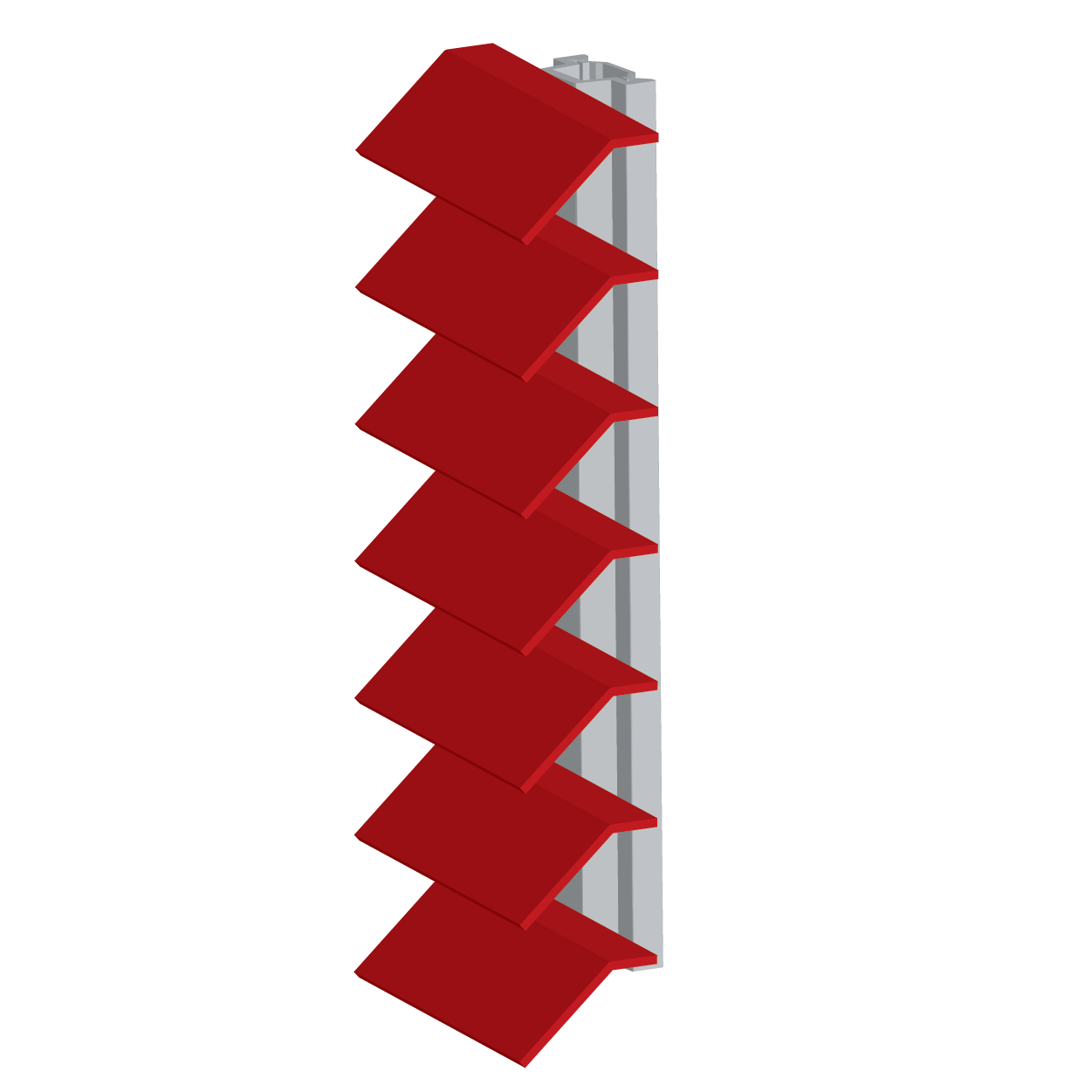

CATL30

0.465" Deep 30° Non-Drainable Blade Thin Line Extruded Aluminum Louver

CATL30

Free Area %: 72.6%

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

CATL42

0.465" Deep 42° Non-Drainable Blade Thin Line Extruded Aluminum Louver

CATL42

Free Area %: 61.11%

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

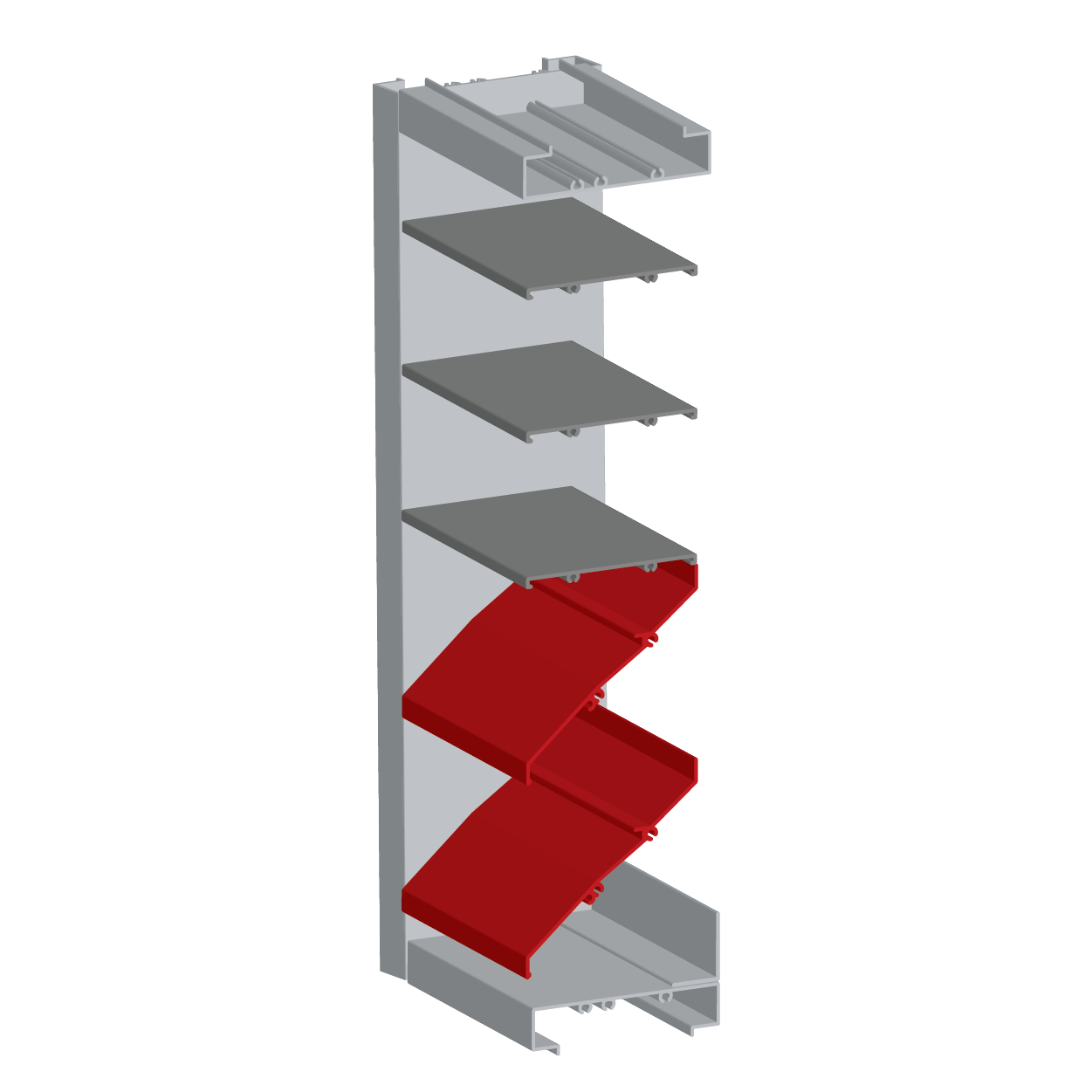

C-DI-50

4" Deep Combined Stationary Intake & Discharge Louver

CDI50

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight and Baffle (J and K-Blades)

More Info

CEA64C

6" Deep Adjustable Blade Hurricane Louver (Miami-Dade Certified)

CEA64C

Free Area %: 51%
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

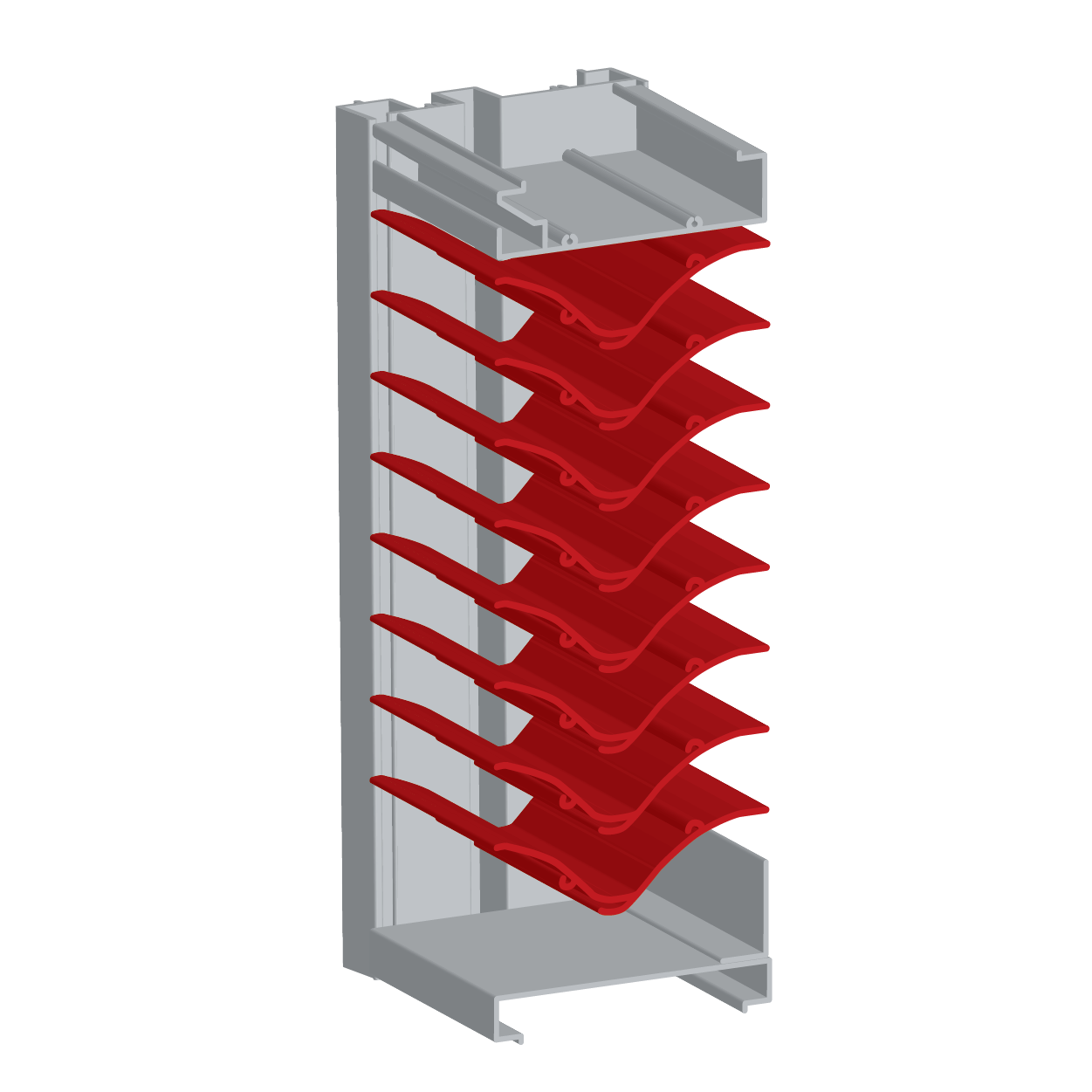

CEA662HSL

6" Deep Extruded Aluminum Horizontal Chevron Blade Rain Resistant Storm Louver

CEA662HSL

Free Area %: 51%
Pressure Drop: .1 in. w.g. @ 925 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .1 in. w.g. @ 925 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

CFS150

1.5" Deep 45 Degree Stationary Formed Steel Louver

CFS150

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

More Info

CFS609

6" Deep Stationary Inverted "V" Blade Steel Louver

CFS609

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Chevron Blade

More Info

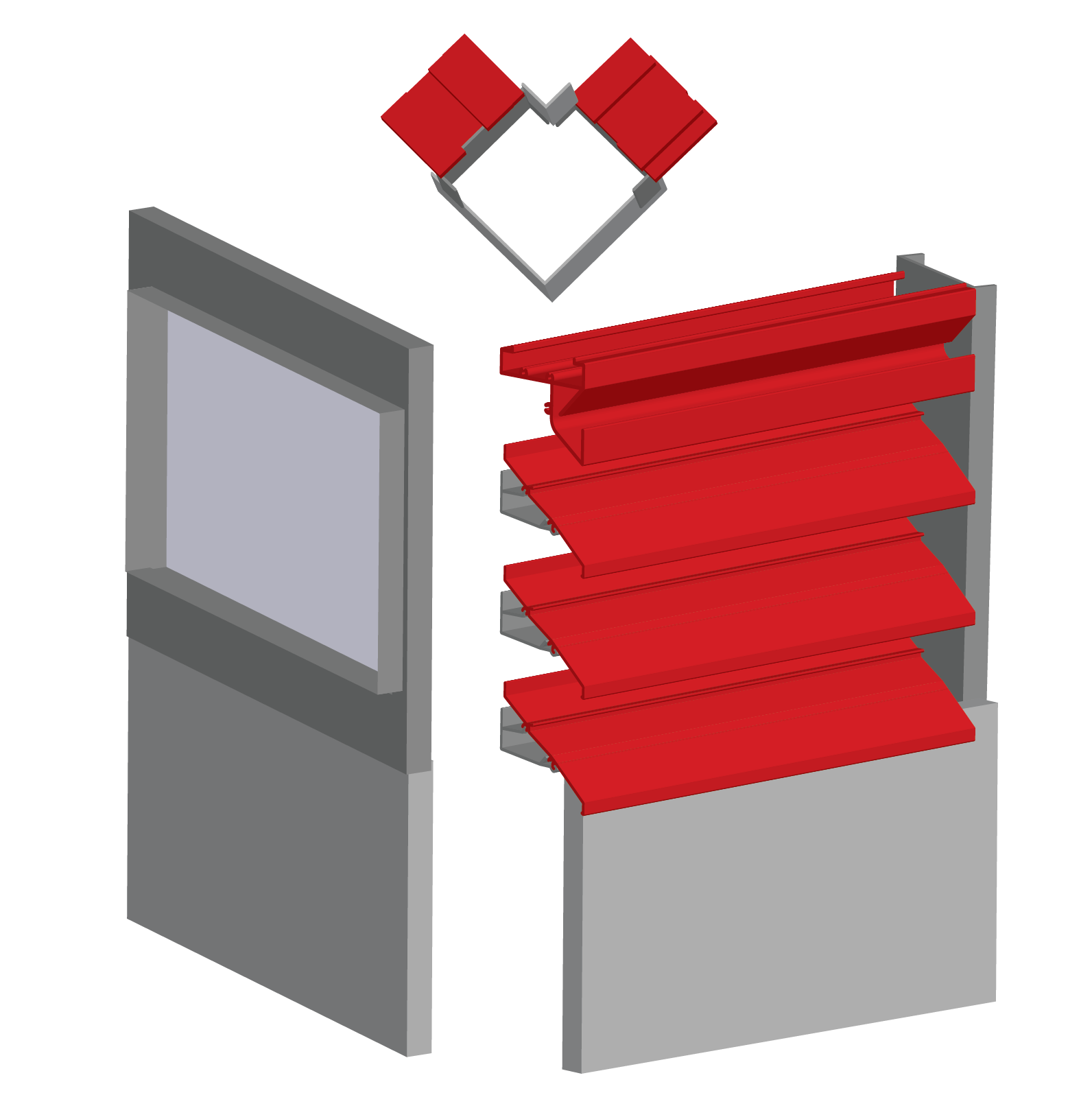

CSEP45S

Smoke Evacuation Extruded Aluminum Penthouse

CSEP45S32, CSEP45S38, CSEP45S44

Free Area %: 30.69%
Pressure Drop: .125 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .125 in. w.g. @ 1000 fpm

More Info

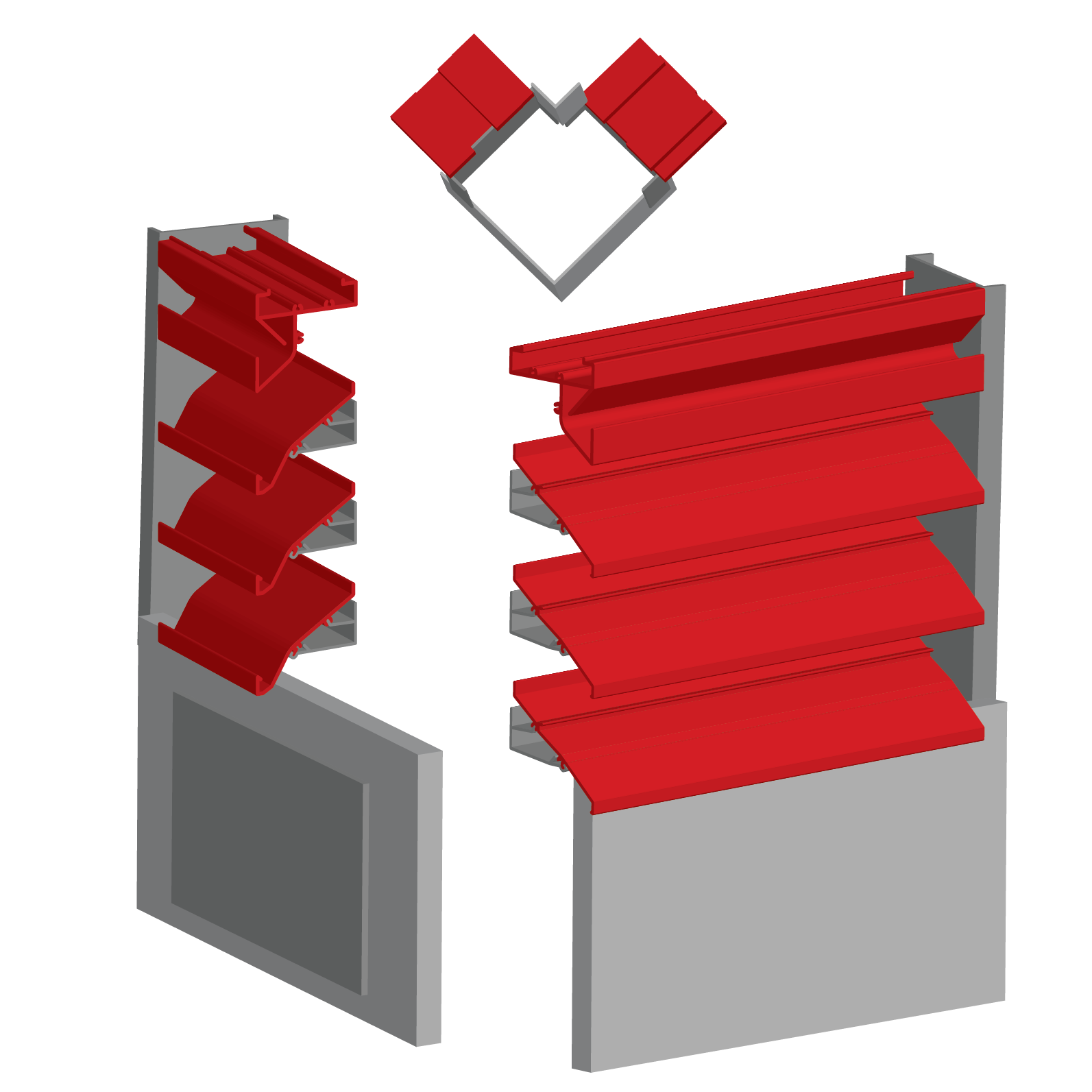

CSVP45C

Stack Ventilation Extruded Aluminum Penthouse

CSVP45C32, CSVP45C38, CSVP45C44

Free Area %: 40.87%
Pressure Drop: .125 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .125 in. w.g. @ 1000 fpm

More Info

FSCF8

8" Deep Steel FEMA Louver

FSCF8

Free Area %: 53%
Pressure Drop: .3 in. w.g. @ 1000 fpm

Material Options: Hot Rolled Steel, or Structural Steel
Blade Type: Chevron Blade
Pressure Drop: .3 in. w.g. @ 1000 fpm

More Info

G2J4

2" Deep 45° Stationary Non-Drainable Blade Steel Louver

G2J4

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

More Info

G400

4" Deep 45° Stationary Non-Drainable Blade Steel Louver

G400

Free Area %: 51%
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)(FPM)

More Info

G4D4

4" Deep 45 Degree Stationary Drain Blade Steel Louver

G4D4

Free Area %: 50%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)(FPM)

More Info

G4D4A

4" Deep 45° Blade Adjustable Steel Louver

G4D4A

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)(FPM)

More Info

G4J3

4" Deep 30° Stationary Non-Drainable Blade Steel Louver

G4J3

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

More Info

G4J4A

4" Deep Formed Steel Adjustable Louver

G4J4A

Free Area %: 48.68%
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)(FPM)

More Info

G4K4

4" Deep 45° Stationary Baffle Blade Steel Louver

G4K4

Free Area %: 51.6%
Pressure Drop: .07 in. w.g. @ 650 fpm
Water Penetration (fpm): 643 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .07 in. w.g. @ 650 fpm
Water Penetration (fpm): 643 (fpm)(FPM)

More Info

G4YH

4" Deep Stationary Inverted V Blade Steel Louver

G4YH

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Chevron Blade

More Info

G6B4

6" Deep 45° Stationary Baffle Blade Steel Louver

G6B4

Free Area %: 45.81%

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Baffle Blade (K-Blade)

More Info

G6D3

6" Deep 35° Stationary Drainable Blade Steel Louver

G6D3

Free Area %: 55%
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)(FPM)

More Info

G6D4

6" Deep 45° Stationary Drainable Blade Steel Louver

G6D4

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)(FPM)

More Info

G6D4A

6" Deep Drainable Blade Adjustable Steel Louver

G6D4A

Free Area %: 53.13%
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)(FPM)

More Info

G6I9

6" Deep Insulated Blade Adjustable Steel Louver

G6I9

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Insulated Airfoil

More Info

G6J3

6" Deep 30° Stationary Non-Drainable Blade Steel Louver

G6J3

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

More Info

G6K4

6" Deep 45° Stationary Non-Drainable Blade Steel Louver

G6K4

Free Area %: 46.3%

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

More Info

G7D3C

7" Drainable Blade Combination Stationary and Adjustable Steel Louver

G7D3C

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

More Info

P4D3P

4" Deep Extruded Aluminum Drainable Blade Penthouse with Post Corners

P4D3P

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

P4K3M

4" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

P4K3M

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

P4K4P

4" Deep Extruded Aluminum Straight Blade Penthouse with Post Corners

P4K4P

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

P6D4P

6" Deep Extruded Aluminum Drainable Blade Penthouse with Post Corners

P6D4P

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

P6K3M

6" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

P6K3M

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

P6K4P

6" Deep Extruded Aluminum Straight Blade Penthouse with Post Corners

P6K4P

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

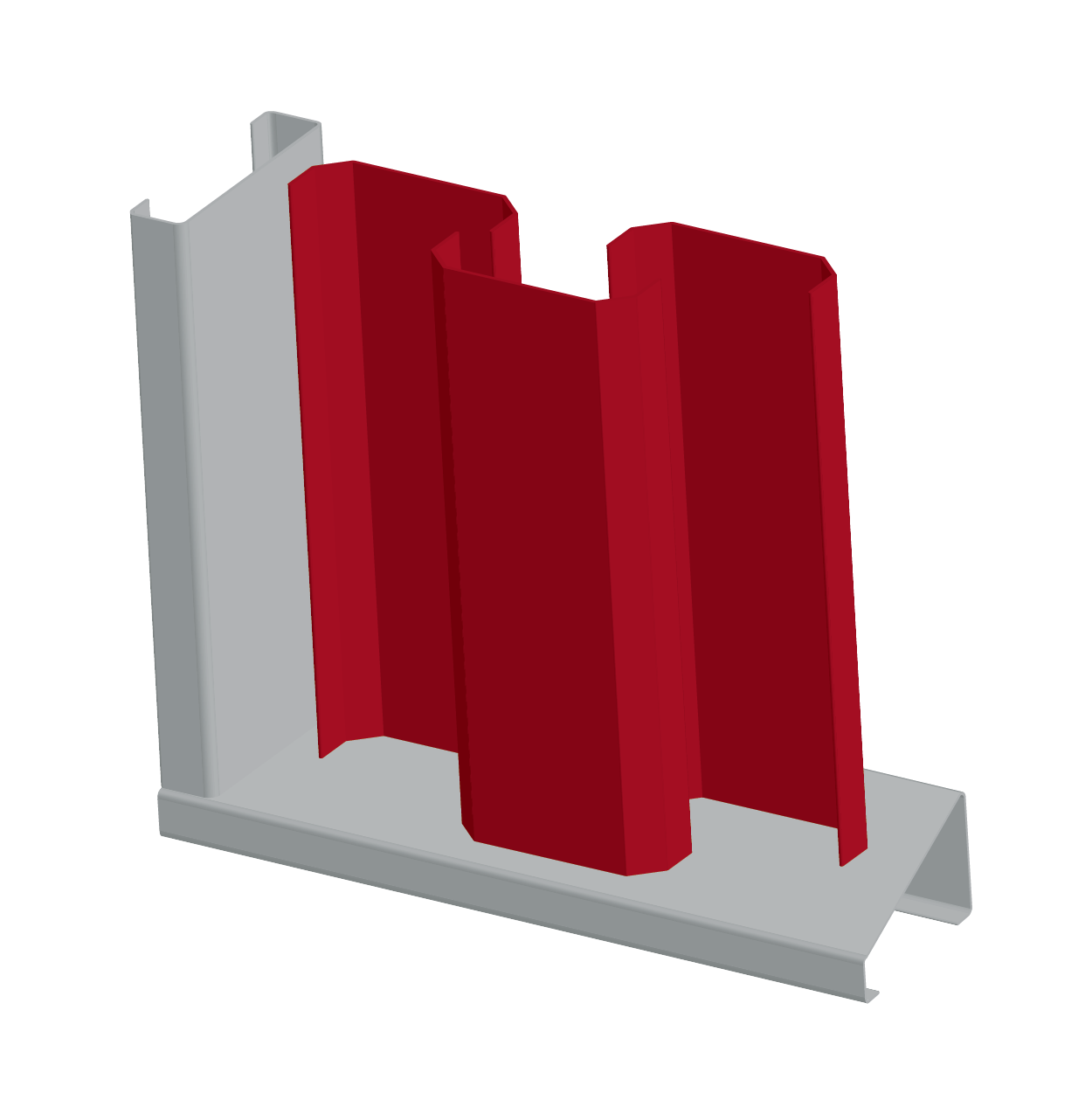

S461

4" Deep Formed Steel Galvanized Sand Louver

S461

Free Area %: 34%
Pressure Drop: .7 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Vertical U (Sand)
Pressure Drop: .7 in. w.g. @ 1000 fpm

More Info

SAI2

Equipment Screen With 2" Horizontal Extruded Aluminum Blades

SAI2

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Straight Blade

More Info

SAI4

Equipment Screen With 4" Horizontal Extruded Aluminum Blades

SAi4

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Straight Blade

More Info

SAI6

Equipment Screen With 6" Horizontal Extruded Aluminum Blades

SAI6

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Straight Blade
Blade Action: Single

More Info

SAV

Extruded Aluminum Equipment Screen with Vertical Chevron Blades

SAV

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade

More Info

SAY

Extruded Aluminum Equipment Screen with Vertical "Y" Blades

SAY

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Vertical Y (Sightproof)

More Info

X1K4

1.5" Deep, 30° Baffle Blade Extruded Aluminum Louver

X1K4

Free Area %: 46%
Pressure Drop: .034 in. w.g. @ 495 fpm
Water Penetration (fpm): 459 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .034 in. w.g. @ 495 fpm
Water Penetration (fpm): 459 (fpm)(FPM)

More Info

X2D4

2" Deep, 45° Extruded Aluminum Drainable Blade Louver

X2D4

Free Area %: 45%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 901 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 901 (fpm)(FPM)

More Info

X2HW

2" Deep Horizontal Drainable Chevron Blades Wind Driven Rain

X2HW

Free Area %: 43.3%
Pressure Drop: .38 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .38 in. w.g. @ 1000 fpm

More Info

X2J4

2" Deep, 45° Baffle Blade Extruded Aluminum Curtain Wall Louver

X2J4

Free Area %: 45%
Pressure Drop: .09 in. w.g. @ 750 fpm
Water Penetration (fpm): 748 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .09 in. w.g. @ 750 fpm
Water Penetration (fpm): 748 (fpm)(FPM)

More Info

X2YH

2" Deep, Extruded Aluminum Horizontal Sightproof Louver

X2YH

Free Area %: 27.7%
Pressure Drop: .4 in. w.g. @ 1000 fpm
Water Penetration (fpm): 924 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Y (Sightproof)
Pressure Drop: .4 in. w.g. @ 1000 fpm
Water Penetration (fpm): 924 (fpm)(FPM)

More Info

X4D3

4" Deep 37° Extruded Aluminum Drainable Blade Louver

X4D3

Free Area %: 57%
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)(FPM)

More Info

X4D4

4" Deep 45° Drain Blade Extruded Aluminum Louver

X4D4

Free Area %: 51%
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)(FPM)

More Info

X4D4A

4" Deep Drainable Blade Adjustable Louver

X4D4A

Free Area %: 44%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 974 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 974 (fpm)(FPM)

More Info

X4D4AM

4" Deep Drainable Blade Adjustable Louver With Concealed Actuator

X4D4AM

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)

More Info

X4DD

4" Deep 45° Dual Drain Blade Extruded Aluminum Louver

X4DD

Free Area %: 52%
Pressure Drop: .17 in. w.g. @ 1100 fpm
Water Penetration (fpm): 942 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .17 in. w.g. @ 1100 fpm
Water Penetration (fpm): 942 (fpm)(FPM)

More Info

X4DDC

4" Deep Drainable Combination Adjustable and Stationary Louver

X4DDC

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)(FPM)

More Info

X4DDCM

4" Deep Drainable Combination Adjustable and Stationary Louver With Concealed Actuator

X4DDCM

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

X4J3

4" Deep 37° Extruded Aluminum Fixed Straight Blade Louver

X4J3

Free Area %: 57%
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)(FPM)

More Info

X4J4

4" Deep 45° Straight Blade Extruded Aluminum Louver

X4J4

Free Area %: 57%
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)(FPM)

More Info

X4J4A

4" Deep Non-Drainable Pin-Lock Blade Adjustable Louver

X4J4A

Free Area %: 43%
Pressure Drop: .16 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1044 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Pin-Lock
Pressure Drop: .16 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1044 (fpm)(FPM)

More Info

X4JI

4" Deep Automatic Combination Louver - Intake or Discharge

X4JI

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

X4K3

4" Deep 30° Baffle Blade Louver

X4K3

Free Area %: 47.9%
Pressure Drop: .08 in. w.g. @ 780 fpm
Water Penetration (fpm): 763 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .08 in. w.g. @ 780 fpm
Water Penetration (fpm): 763 (fpm)(FPM)

More Info

X4K4

4" Deep 45° Extruded Aluminum Baffle Blade Louver

X4K4

Free Area %: 56%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 932 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 932 (fpm)(FPM)

More Info

X4SH

4" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

X4SH

Free Area %: 47%
Pressure Drop: .26 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .26 in. w.g. @ 1000 fpm

More Info

X4SV

4" Deep Vertical Chevron Drainable Blade Wind Driven Rain Resistant Louver

X4SV

Free Area %: 47%
Pressure Drop: .26 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .26 in. w.g. @ 1000 fpm

More Info

X4VH

4" Deep Horizontal Extruded Aluminum Sightproof Chevron Blade Louver

X4VH

Free Area %: 38.9%
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 789 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Blade Action: Parallel
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 789 (fpm)(FPM)

More Info

X4VV

4" Deep Vertical Extruded Aluminum Sightproof Chevron Blade Louver

X4VV

Free Area %: 38.9%
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 848 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 848 (fpm)(FPM)

More Info

X4YH

4" Deep Inverted Y Blade Extruded Aluminum Horizontal Sightproof Louver

X4YH

Free Area %: 37.4%
Pressure Drop: .36 in. w.g. @ 1000 fpm
Water Penetration (fpm): 920 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Y (Sightproof)
Pressure Drop: .36 in. w.g. @ 1000 fpm
Water Penetration (fpm): 920 (fpm)(FPM)

More Info

X4YV

4" Deep Inverted Y Blade Extruded Aluminum Vertical Sightproof Louver

X4YV

Free Area %: 37.4%
Pressure Drop: .35 in. w.g. @ 1000 fpm
Water Penetration (fpm): 984 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Inverted Y (Sightproof)
Pressure Drop: .35 in. w.g. @ 1000 fpm
Water Penetration (fpm): 984 (fpm)(FPM)

More Info

X5DD

5" Deep Drainable Chevron Blade Wind Driven Rain Resistant Sightproof Louver

X5DD

Free Area %: 44.3%
Pressure Drop: .32 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .32 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

X5HW

5" Deep, Fixed Chevron Drainable Blade, Hurricane Louver (Miami-Dade Certified)

X5HW

Free Area %: 44.3%
Pressure Drop: .31 in. w.g. @ 1250 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .31 in. w.g. @ 1250 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

X5SD

5" Deep Chevron Drainable Blade Louver

X5SD

Free Area %: 48.3%
Pressure Drop: .208 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1141 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .208 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1141 (fpm)(FPM)

More Info

X5SDV

5" Deep Vertical Chevron Drainable Blade Wind Driven Rain Resistant Sightproof Louver

X5SDV

Free Area %: 46.1%
Pressure Drop: .22 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .22 in. w.g. @ 1000 fpm

More Info

X6D3

6" Deep Extruded Aluminum 35°/42° Drainable Blade Louver

X6D3

Free Area %: 56%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

X6D3A

6" Deep Drainable Blade Adjustable Louver

X6D3A

Free Area %: 54%
Pressure Drop: .145 in. w.g. @ 1000 fpm
Water Penetration (fpm): 880 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .145 in. w.g. @ 1000 fpm
Water Penetration (fpm): 880 (fpm)(FPM)

More Info

X6D3AM

6" Deep Drainable Blade Adjustable Louver with Concealed Actuator

X6D3AM

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)

More Info

X6D3C

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver

X6D3C

Free Area %: 52%
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

X6D3CM

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver w/ Concealed Actuator

X6D3CM

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

X6D4C

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver

X6D4C

Free Area %: 52%
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)(FPM)

More Info

X6D4CM

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver w/ Concealed Actuator

X6D4CM

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

More Info

X6D5

6" Deep Continuous Line Extruded Aluminum Drainable Blade Louver with Recessed Mullions

X6D5

Free Area %: 53%
Pressure Drop: .1 in. w.g. @ 800 fpm
Water Penetration (fpm): 1100 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .1 in. w.g. @ 800 fpm
Water Penetration (fpm): 1100 (fpm)(FPM)

More Info

X6DAF

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver

X6DAF

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 1026 fpm
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Pressure Drop: .14 in. w.g. @ 1026 fpm
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

X6DAFM

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver w/ Concealed Mullions

X6DAFM

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

X6DD

6" Deep 42° Dual Drainable Blade Louver

X6DD

Free Area %: 56%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 993 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 993 (fpm)(FPM)

More Info

X6HW

6” Fixed Deep Drainable Blade Hurricane Louver (Miami-Dade Certified)

X6HW

Free Area %: 58%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

X6K4

6" Deep 45° Non-Drainable Blade Extruded Aluminum Louver

X6K4

Free Area %: 55%
Pressure Drop: .16 in. w.g. @ 1100 fpm
Water Penetration (fpm): 1093 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .16 in. w.g. @ 1100 fpm
Water Penetration (fpm): 1093 (fpm)(FPM)

More Info

X6K4A

6" Deep Non-Drainable Blade Adjustable Louver

X6K4A

Free Area %: 57%
Pressure Drop: .15 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .15 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)(FPM)

More Info

X6K4AM

6" Deep Non-Drainable Blade Adjustable Louver with Concealed Actuator

X6K4AM

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)

More Info

X6K970AM

6" Deep Pin-Lock Blade Adjustable Louver With Concealed Actuator

X6K970AM

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Pin-Lock

More Info

X6K9A

6" Deep Non-Drainable Pin-Lock Blade Adjustable Louver

X6K9A

Free Area %: 67%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 681 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Pin-Lock
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 681 (fpm)(FPM)

More Info

X6K9AM

4" Deep Pin-Lock Blade Adjustable Louver With Concealed Actuator

X6K9AM

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Pin-Lock

More Info

X6S7

6" Deep Drainable Combination Stationary Wind Driven Rain Resistant Storm Louver

X6S7

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .16 in. w.g. @ 1000 fpm

More Info

X6VW

6" Deep Vertical Fixed Chevron Blade Hurricane Louver

X6VW

Free Area %: 49.1%
Pressure Drop: .164 in. w.g. @ 1250 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .164 in. w.g. @ 1250 fpm

More Info

X7004

4" Deep Adjustable Louver With Insulated Airfoil Blades

X7004

Free Area %: 38%

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade

More Info

X7C2

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

X7C2

Free Area %: 45.1%
Pressure Drop: .34 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1187 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .34 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1187 (fpm)(FPM)

More Info

X7SC

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

X7SC

Free Area %: 42.4%
Pressure Drop: .022 in. w.g. @ 400 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .022 in. w.g. @ 400 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

More Info

X8C2

8" Deep Chevron Drainable Blade Rain Resistant Louver

X8C2

Free Area %: 56%
Pressure Drop: .48 in. w.g. @ 1000 fpm

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .48 in. w.g. @ 1000 fpm

More Info
