Control Dampers

Direct airflow to where it's needed. Our control dampers are designed for efficient airflow. Available for on-off and modulated flow applications.

Products 31

Products

AAA-AAB

5" Deep Ultra Low Leak Airfoil Control Damper

Featured

Arrow - AFD-20

AAA

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel / Opposed
  • Insulation: Uninsulated
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

C517 / C518

5.5" Deep Airfoil Blade Steel Control Damper

Featured

Arrow - 518_slice

C517, C518

  • Maximum Velocity (FPM): 5000 fpm
  • Max Static Pressure: 12 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 5000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

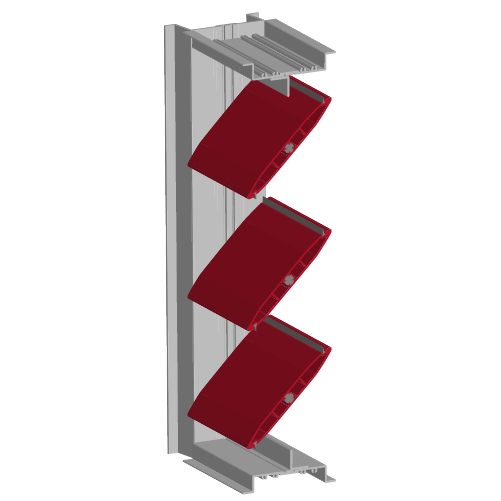

A51

5" Deep Aluminum Airfoil Blade Damper (Parallel)

Arrow AF-206_slice

A51

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

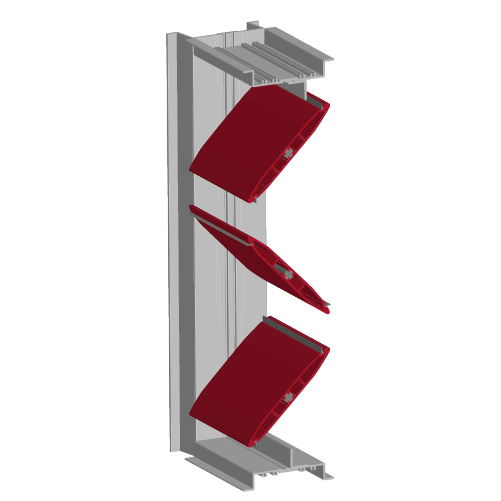

A52

5" Deep Aluminum Airfoil Blade Damper (Opposed)

Arrow AF-207_slice

A52

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Opposed
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

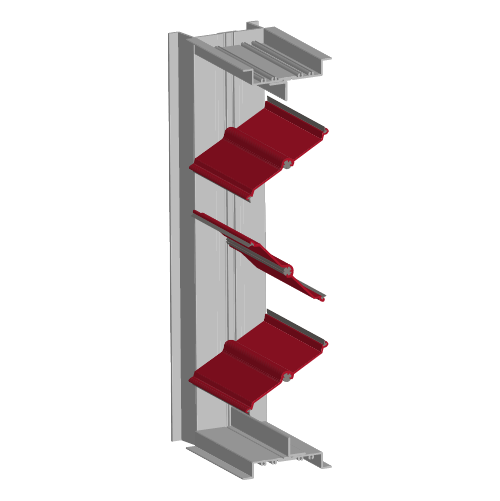

AAO

5" Deep Opposed Single Thickness Blade Pin-Lock Control Damper

Arrow - 506_opposed slice

AAO

  • Maximum Velocity (FPM): 2500 fpm
  • Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2500 fpm (FPM)
More Info

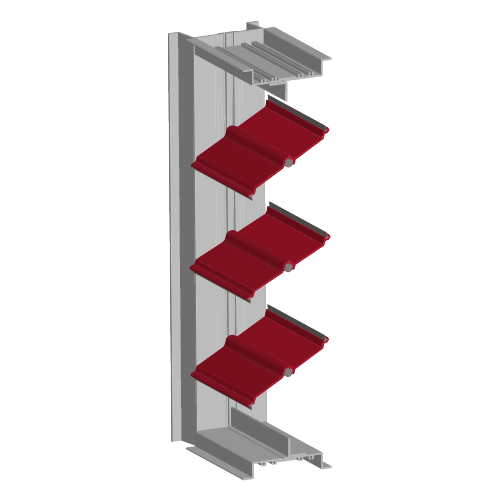

AAP

5" Deep Parallel Single Thickness Blade Pin-Lock Control Damper

Arrow - 506_parallel slice

AAP

  • Maximum Velocity (FPM): 2500 fpm
  • Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2500 fpm (FPM)
More Info

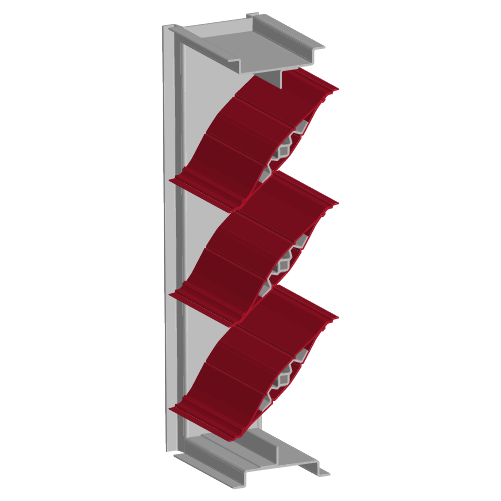

AGA

5.5" Deep Airfoil Blade Steel Control Damper (Parallel)

Arrow - 515SAF_slice

AGA

  • Maximum Velocity (FPM): 4000 fpm
  • Max Static Pressure: 8 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel
  • Frame Shape: Rectangular
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 4000 fpm (FPM)
  • Temperature Rating (°F): 150 °F
More Info

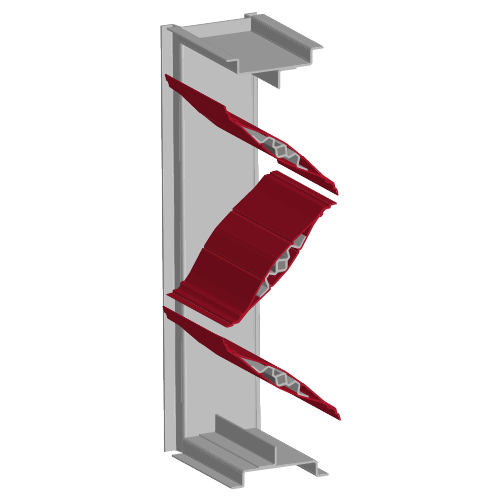

AGB

5.5" Deep Airfoil Blade Steel Control Damper (Opposed)

Arrow - 516SAF_slice

AGB

  • Maximum Velocity (FPM): 4000 fpm
  • Max Static Pressure: 8 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Airfoil Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 4000 fpm (FPM)
  • Temperature Rating (°F): 150 °F
More Info

AGG

Round Single Blade Control Damper with Seals

Arrow - 250SRD

AGG

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 6 .in w.g. @ 1000 fpm
  • Pressure Drop: .013 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .013 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

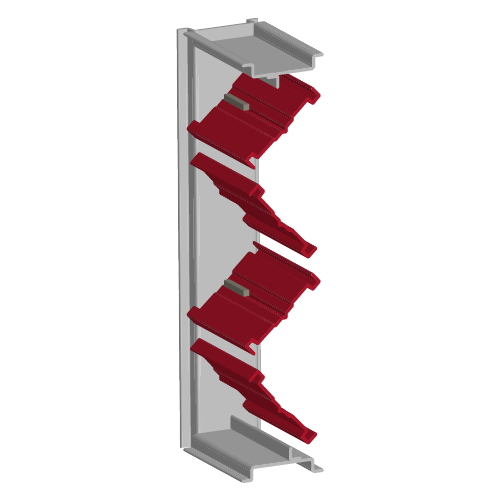

AGO

5.5" Deep Single Thickness Blade Control Damper (Opposed)

Arrow - 496_slice

AGO

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): 200 °F
More Info

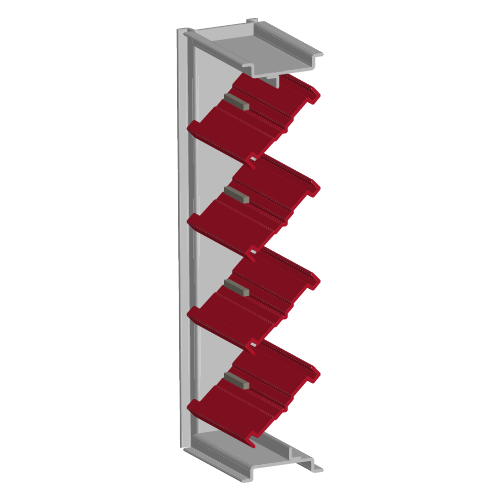

AGP

5.5" Deep Single Thickness Blade Control Damper (Parallel)

Arrow - 495_slice1

AGP

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): 200 °F
More Info

C1770

4" Deep Single Thickness Blade Steel Control Damper

Arrow - 1770

C1770

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

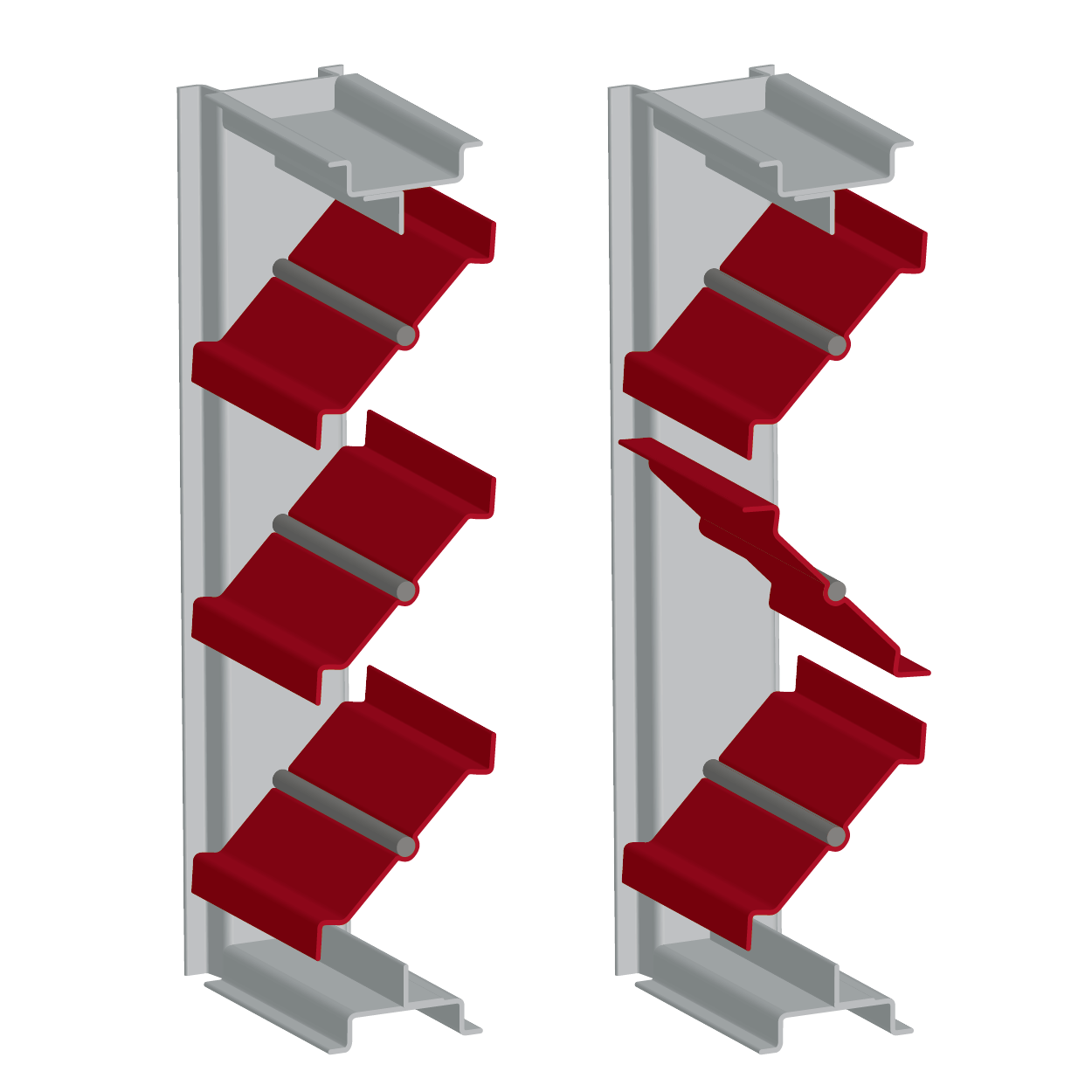

C182

4" Deep Single Thickness Blade Stainless Steel Control Damper

Arrow - 182

C182

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or 316 Stainless Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

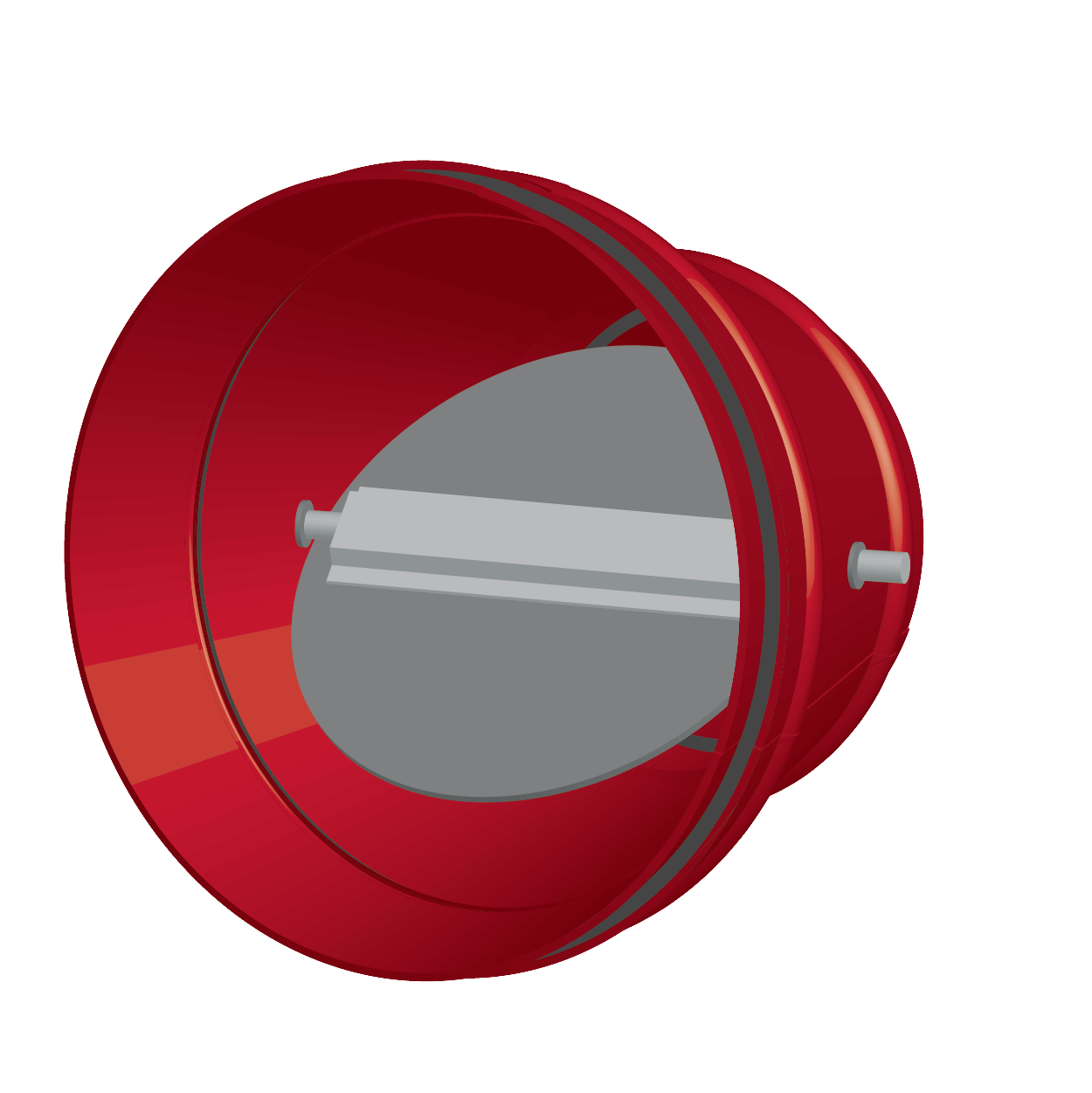

C260DW

Dual Wall Insulated Round Single Blade Volume Control Damper

Arrow - 260DW

C260DW

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 6 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy, 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
  • Blade Type: True Round Single Thickness (UVU)
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
More Info

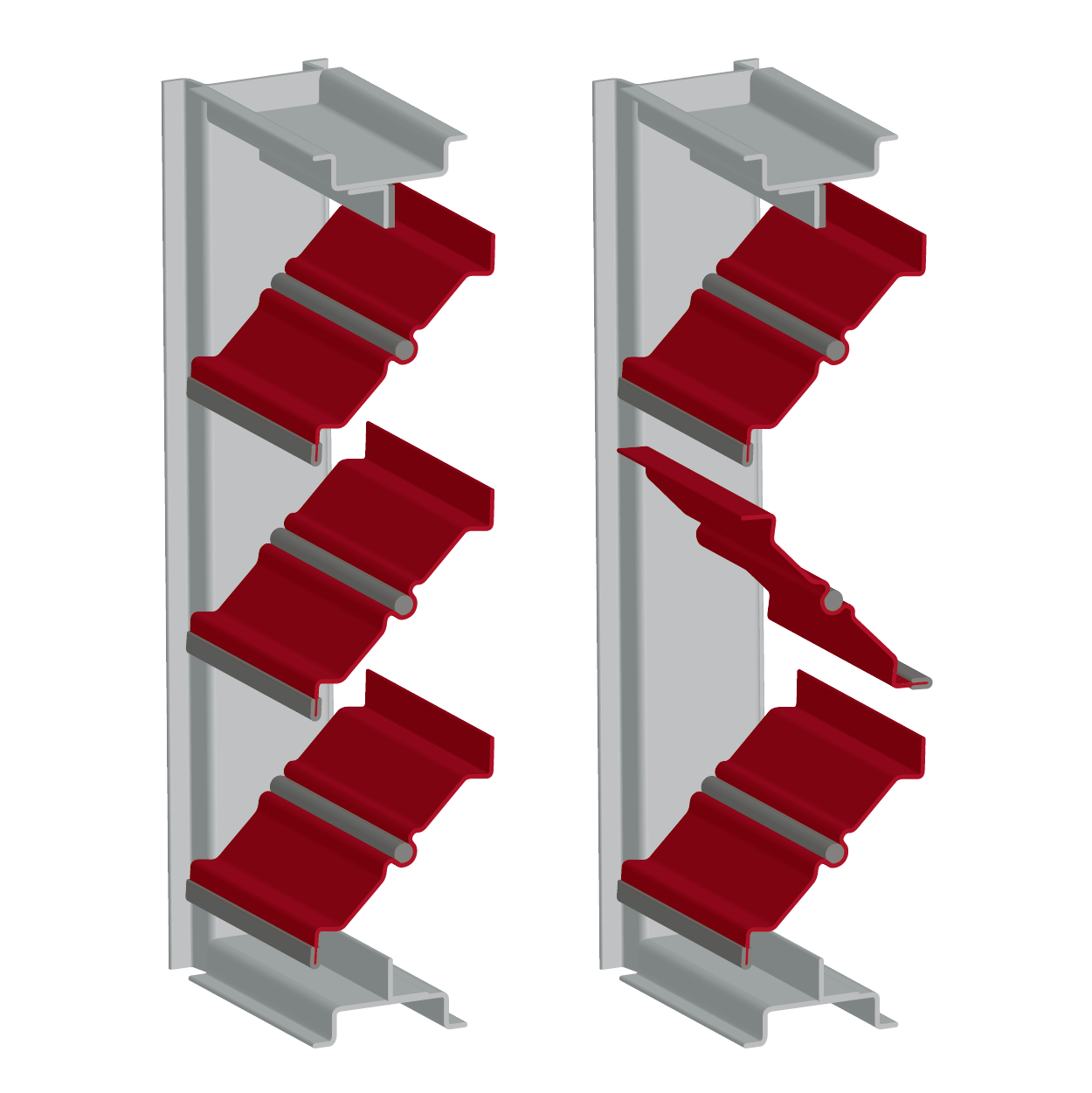

C395

4" Deep Single Thickness Blade Low Leakage Control Damper

Arrow - 395

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

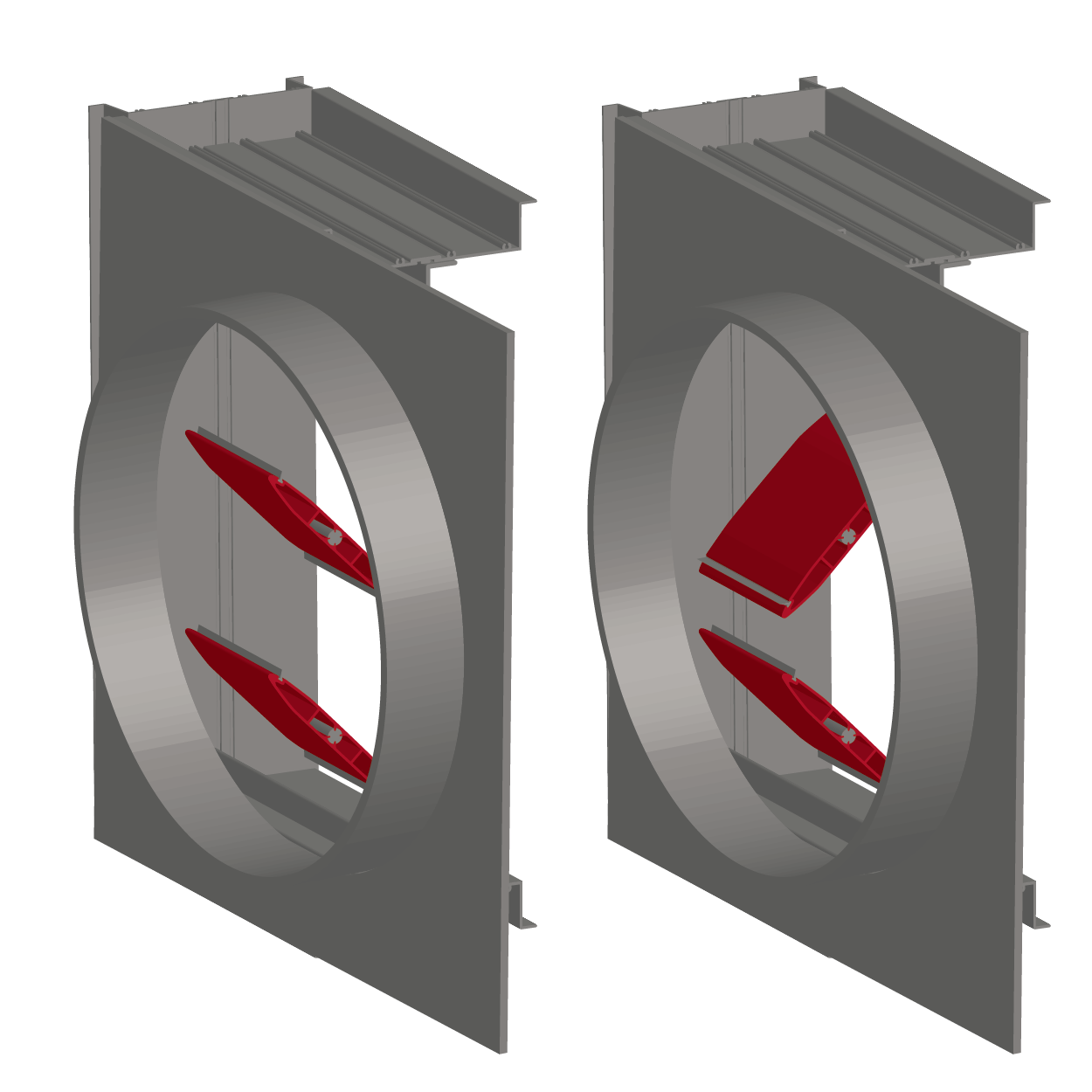

C56

6.5" Deep Aluminum Airfoil Control Damper with Transition

Arrow - 56

C56

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 6 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Round
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
More Info

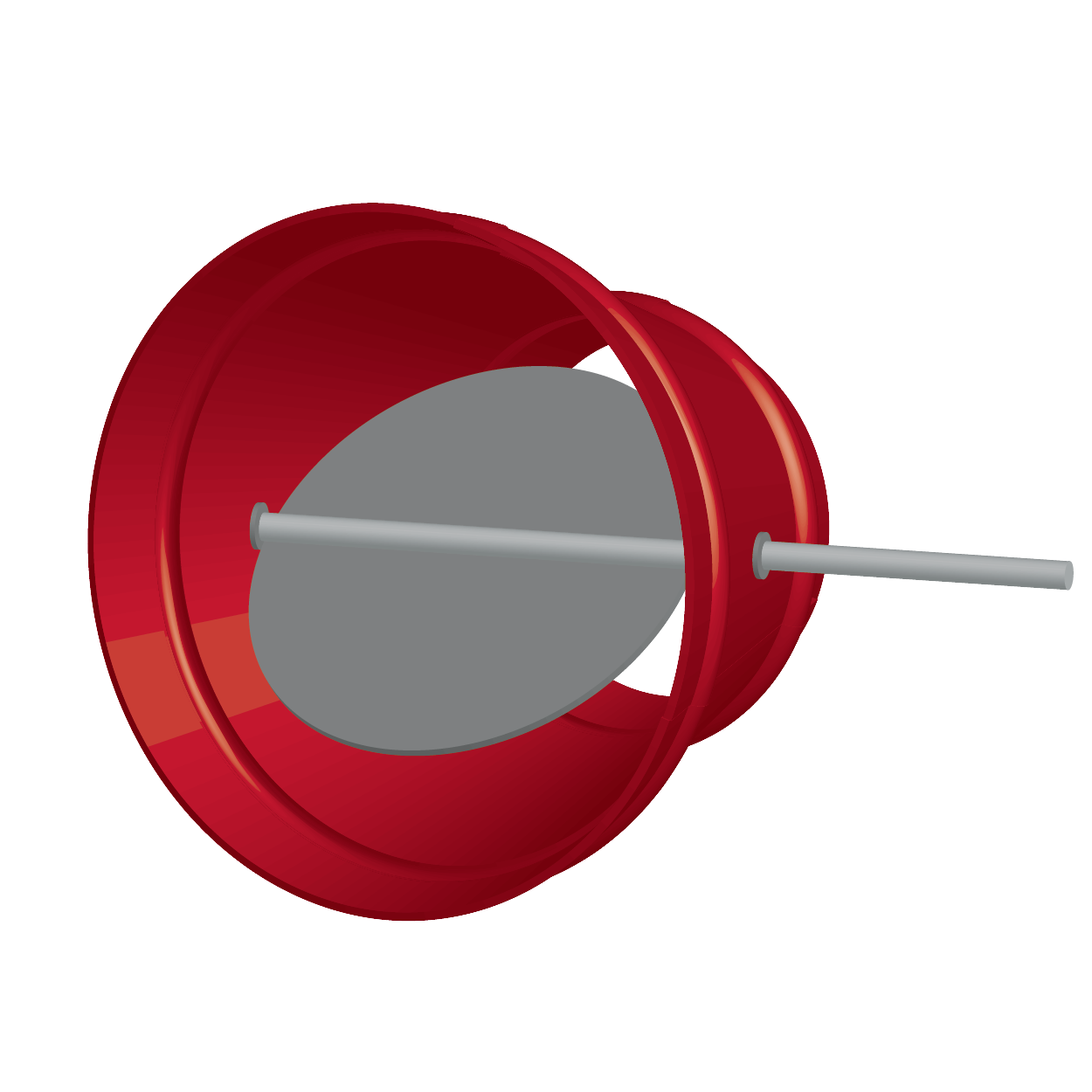

C70

7.5" Deep Round Galvanized Steel Damper

Arrow - 70

C70

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -35 °F to 180 °F
More Info

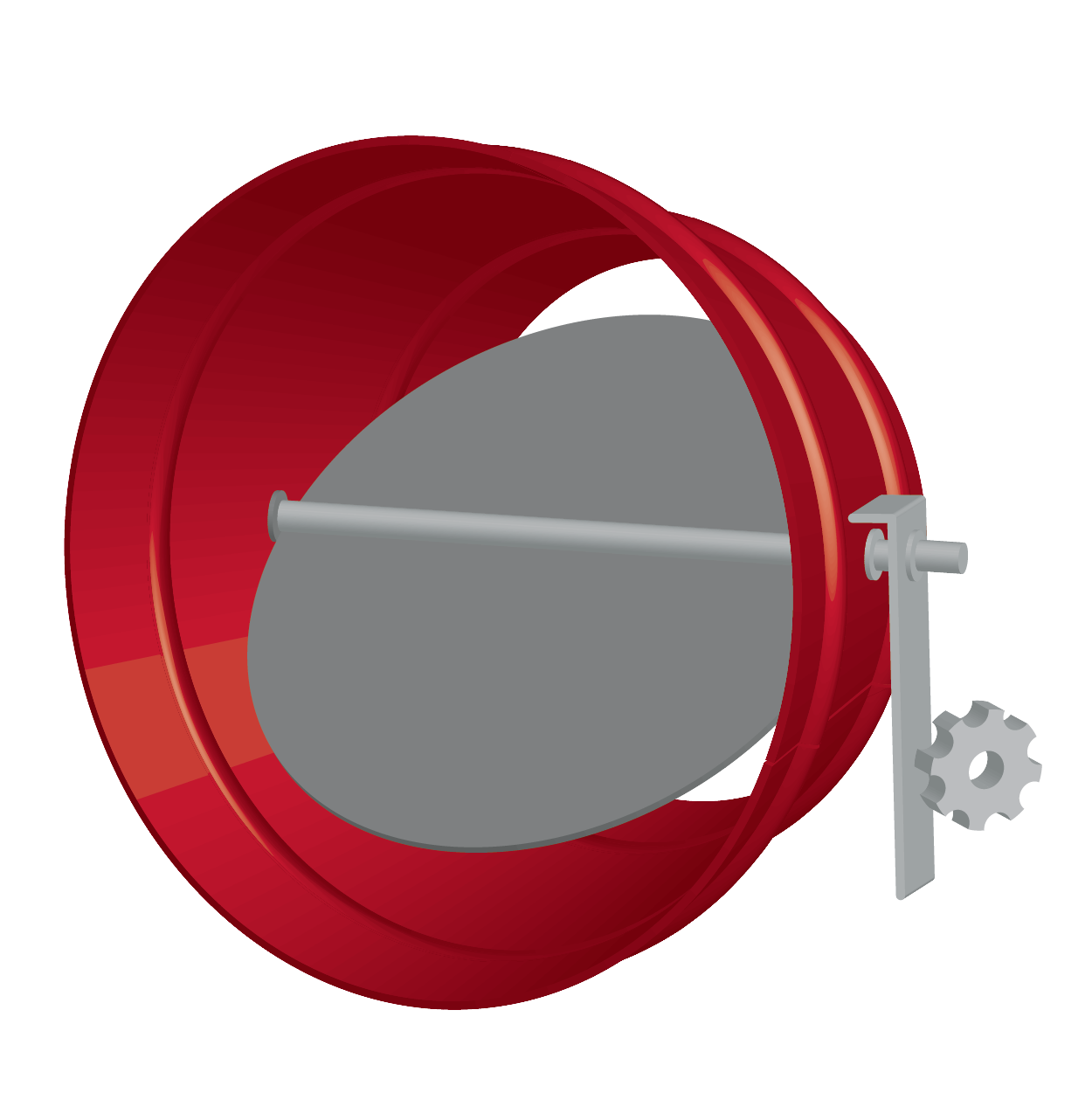

C70GL

7.5" Deep Round Galvanized Steel Damper with Honeywell Actuator

Arrow - 70GL

C70GL

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

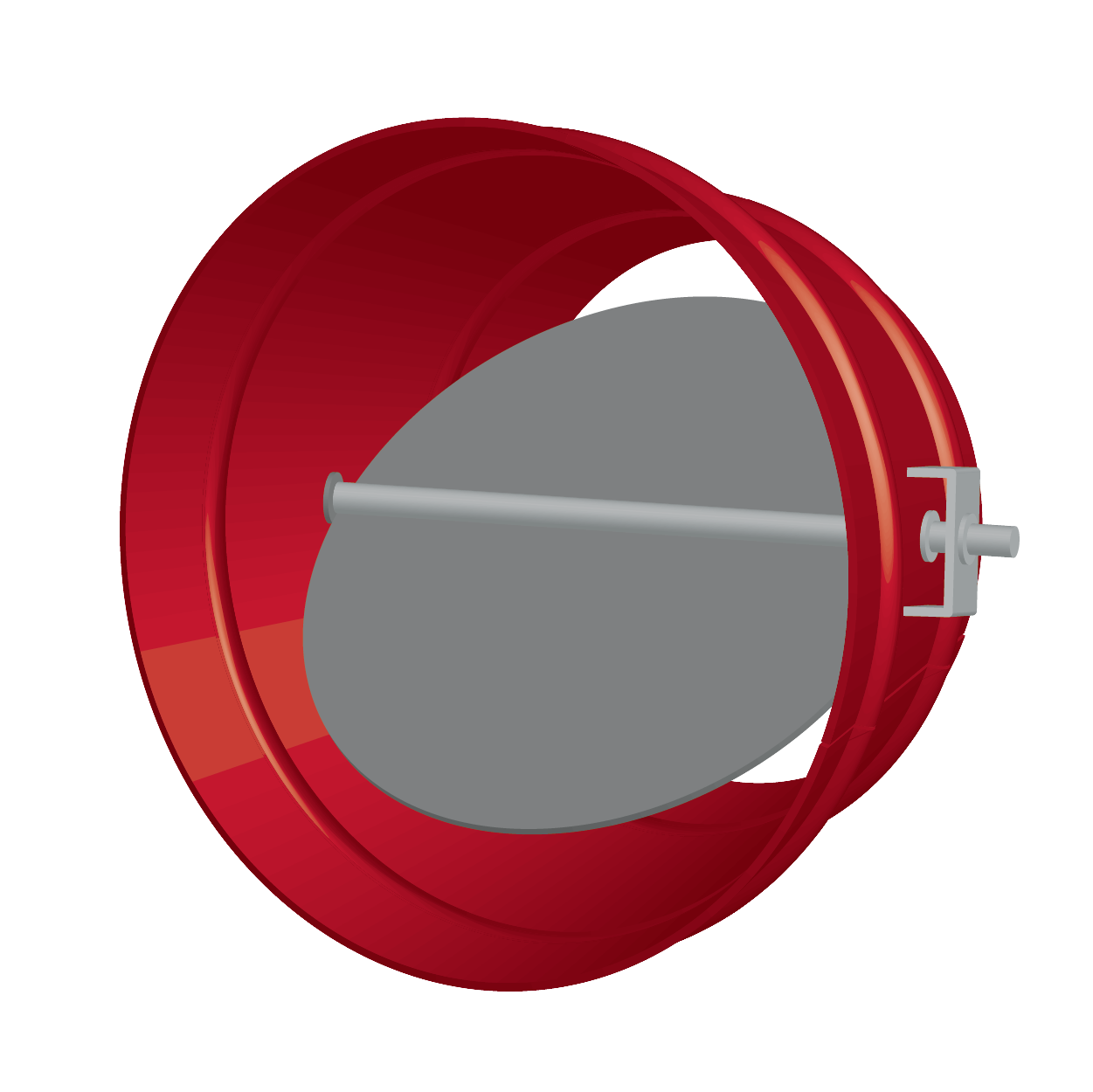

C70R

7.625" Deep Round Single Blade Galvanized Steel Damper with Nine Position Locking Hand Quadrant

Arrow - 70R

C70R

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

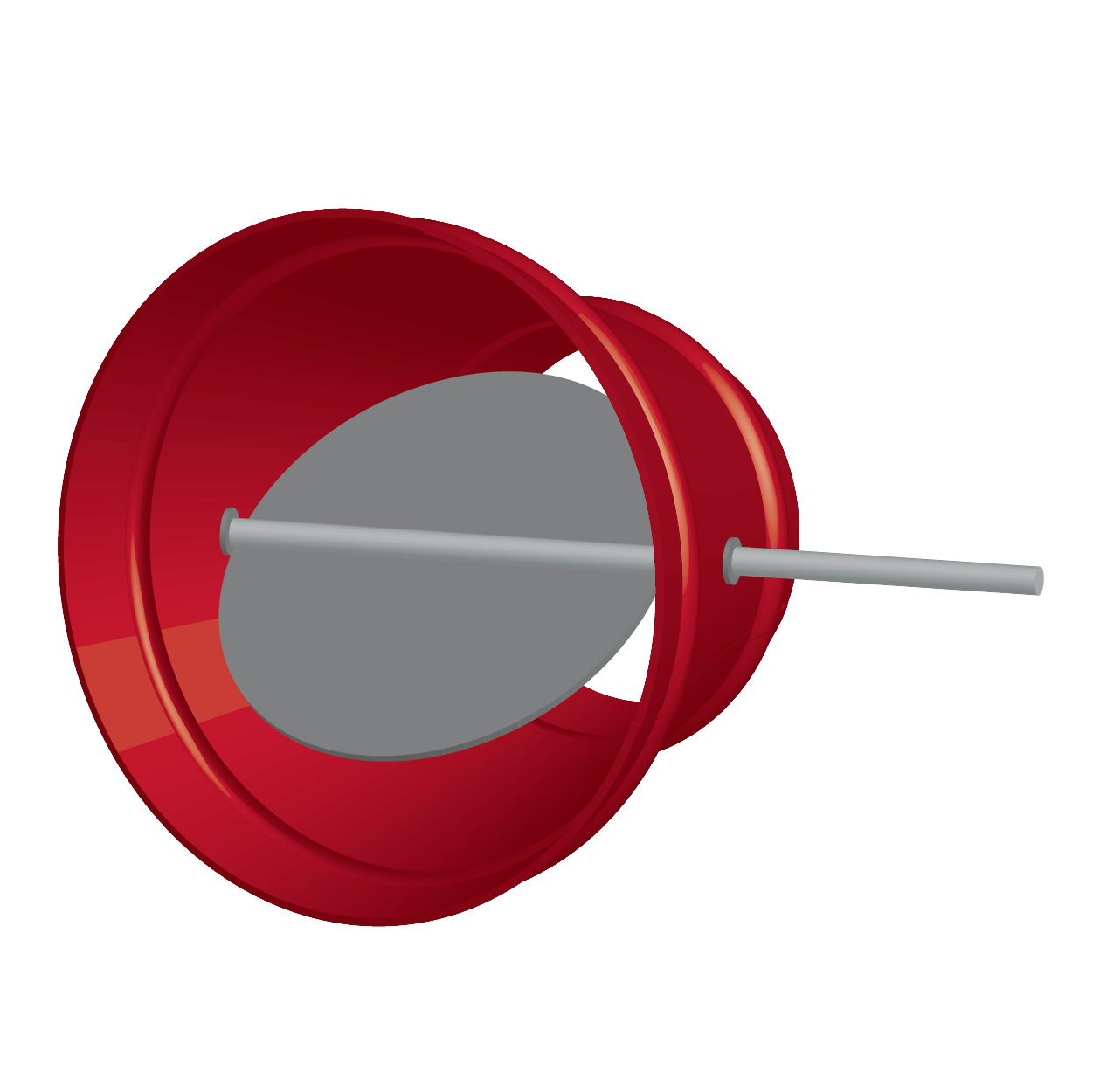

C75

7.5" Deep Round Aluminum Damper

Arrow - 75

C75

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -35 °F to 180 °F
More Info

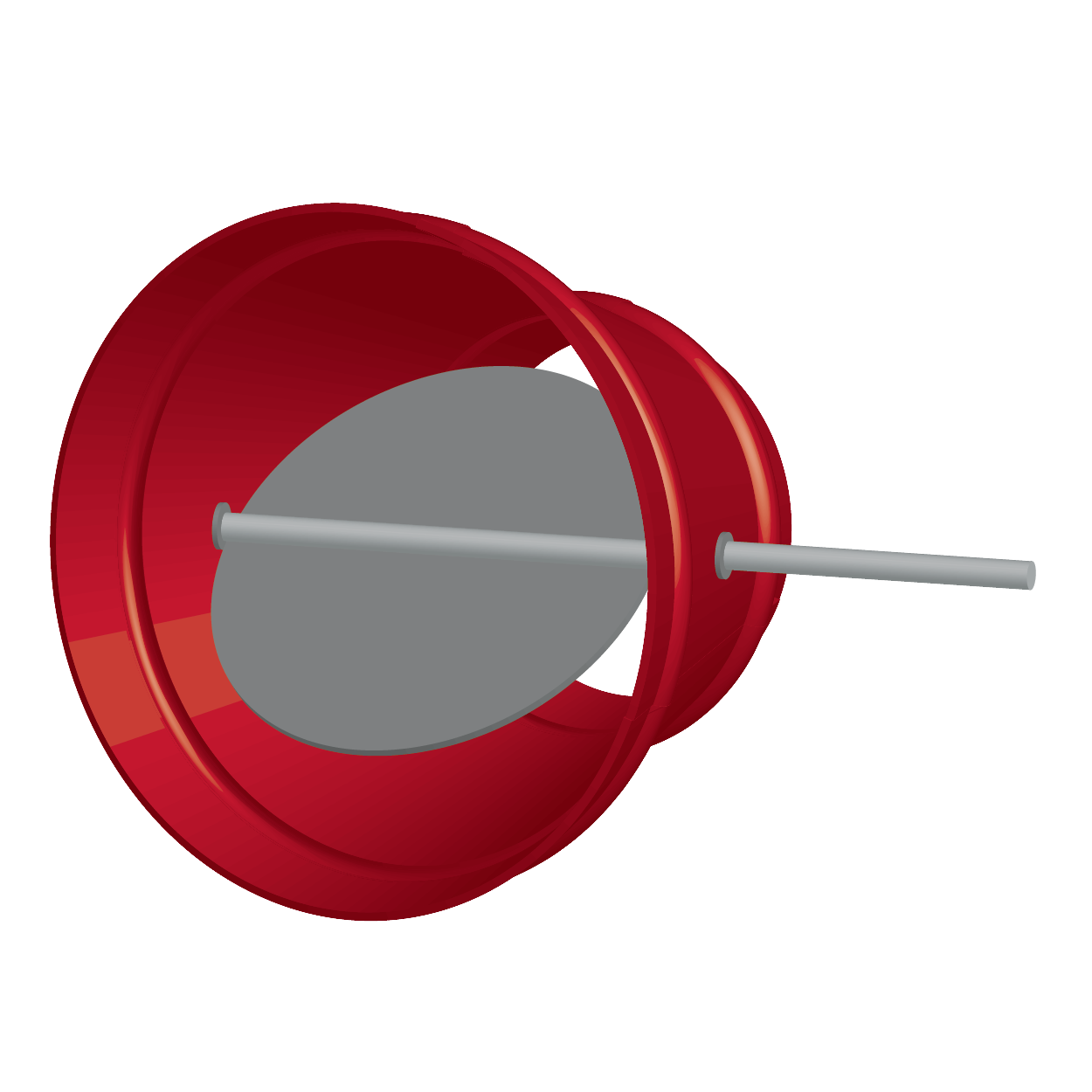

C80

7.5" Deep Round Stainless Steel Damper

Arrow - 80

C80

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or 316 Stainless Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -35 °F to 180 °F
More Info

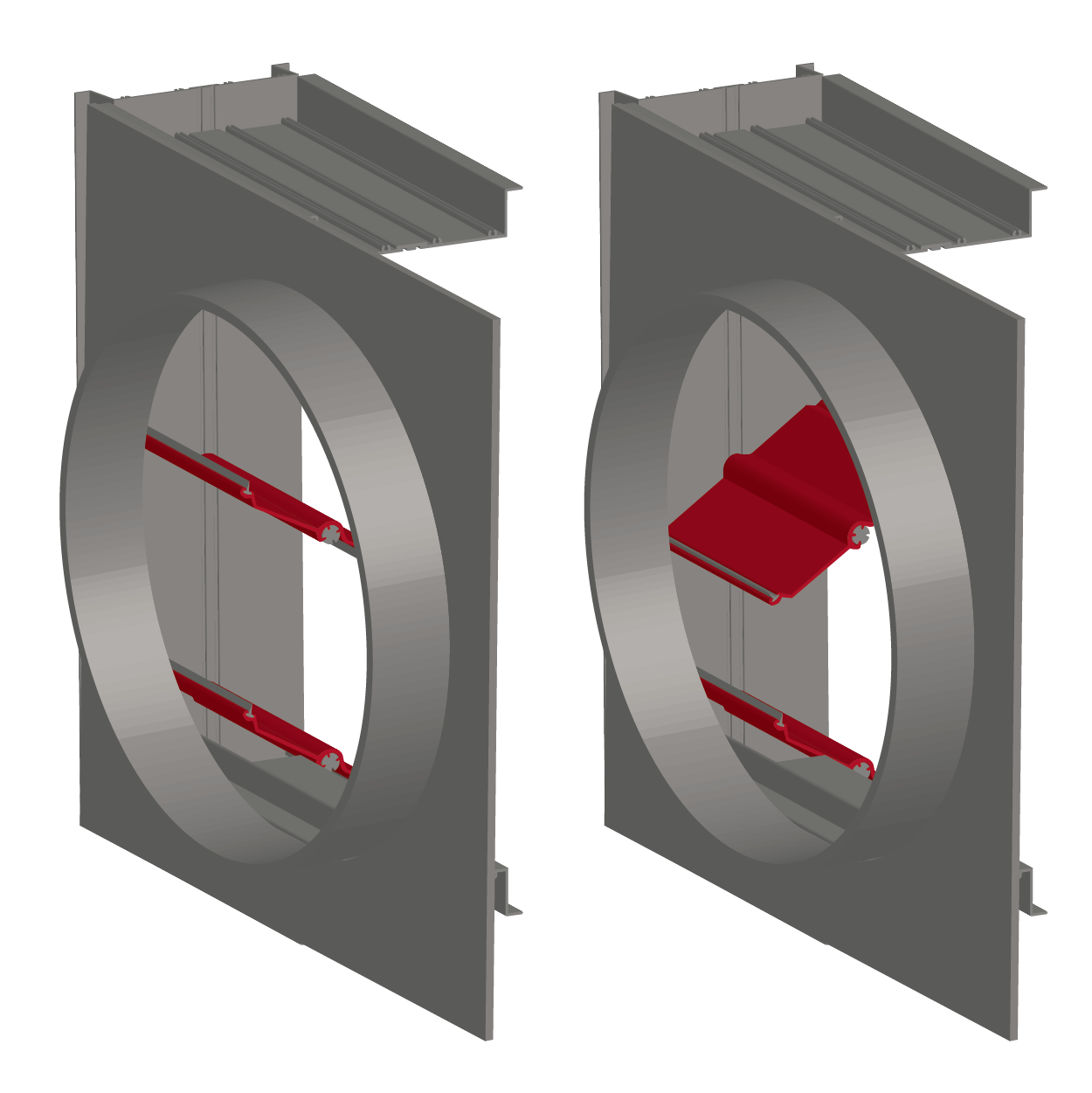

C85

6.5" Deep Aluminum Pin-Lock Control Damper with Transition

Arrow - 85

C85

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Pin-Lock
  • Blade Action: Parallel / Opposed
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
More Info

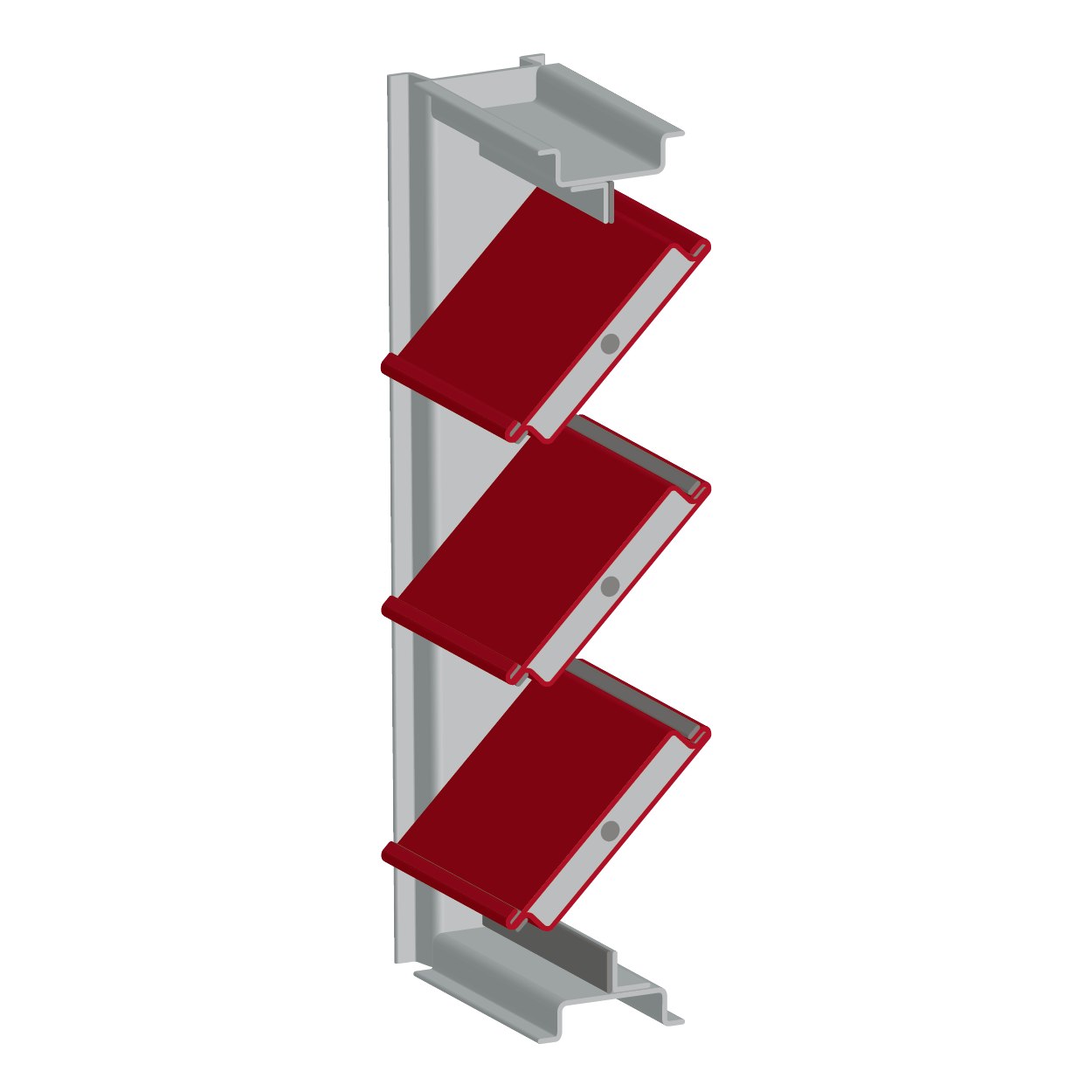

CID200

Parallel Double Thickness Insulated Blade Control Damper

Arrow - ID-200

CID200

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: < .1 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Insulated Airfoil
  • Blade Action: Parallel
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: < .1 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

ITAB

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

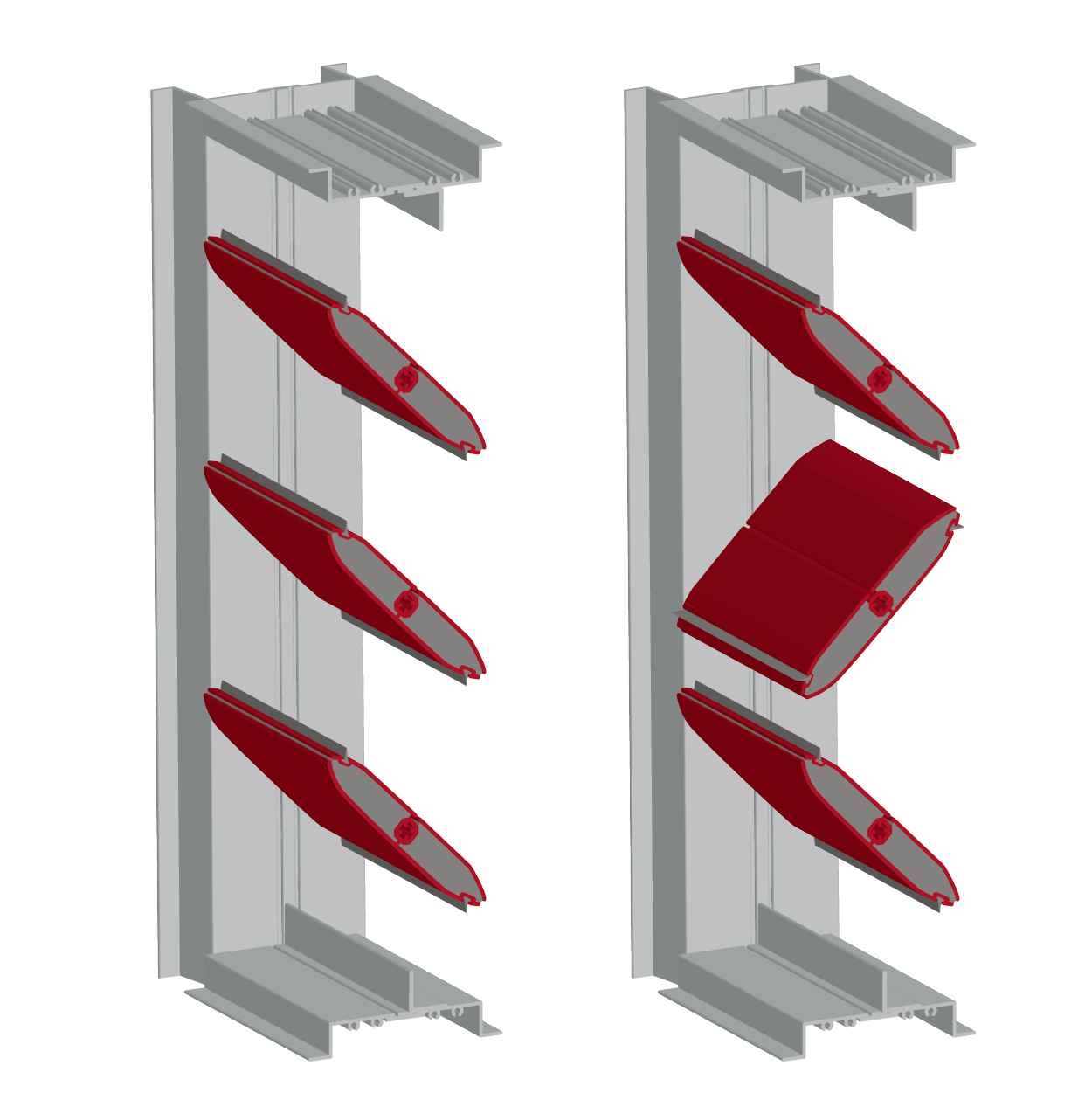

Arrow - AFDTI-25

ITAB

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

ITAB4

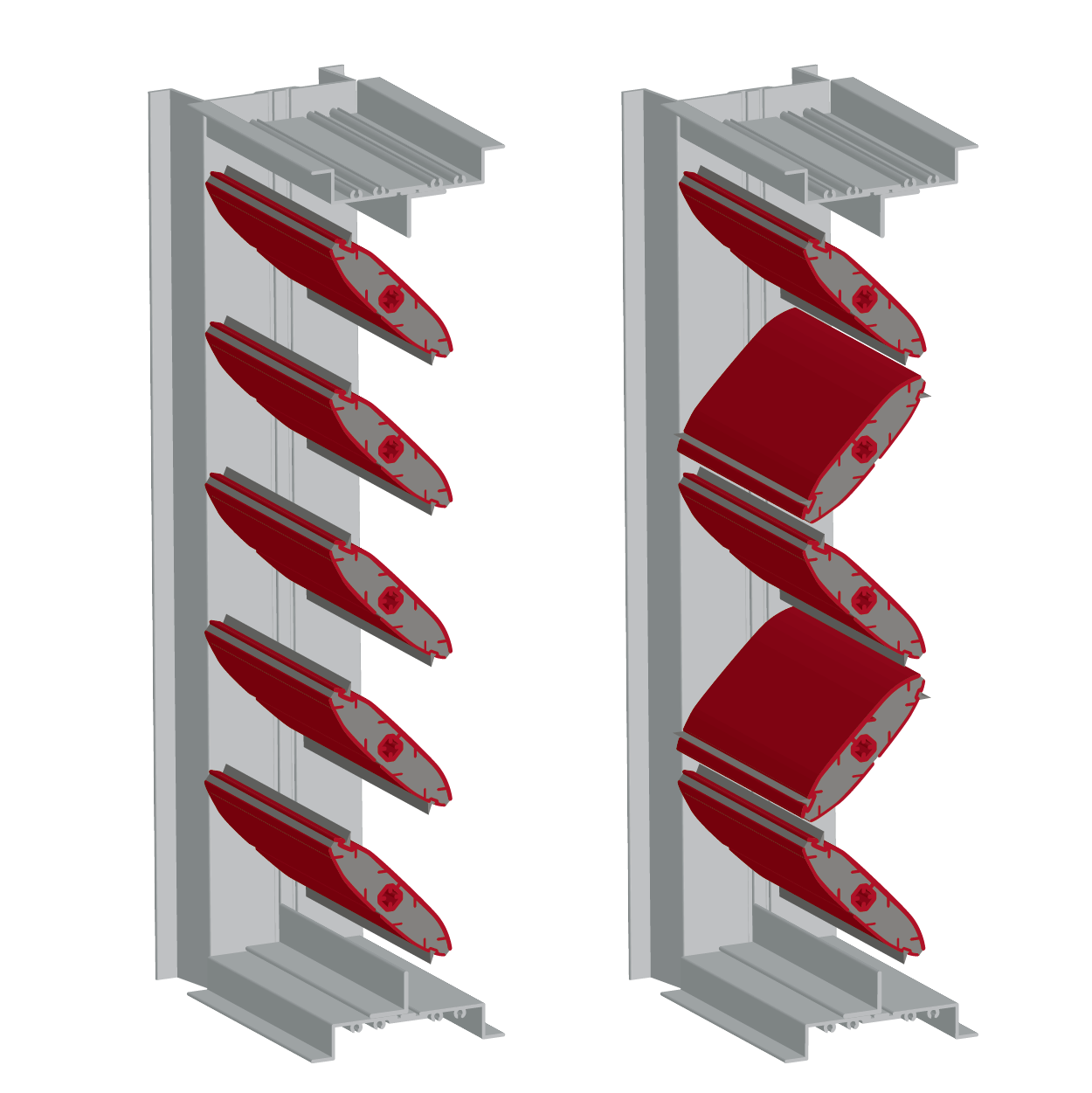

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

Arrow - AFDTI-25-4

ITAB4

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

ITAB4I

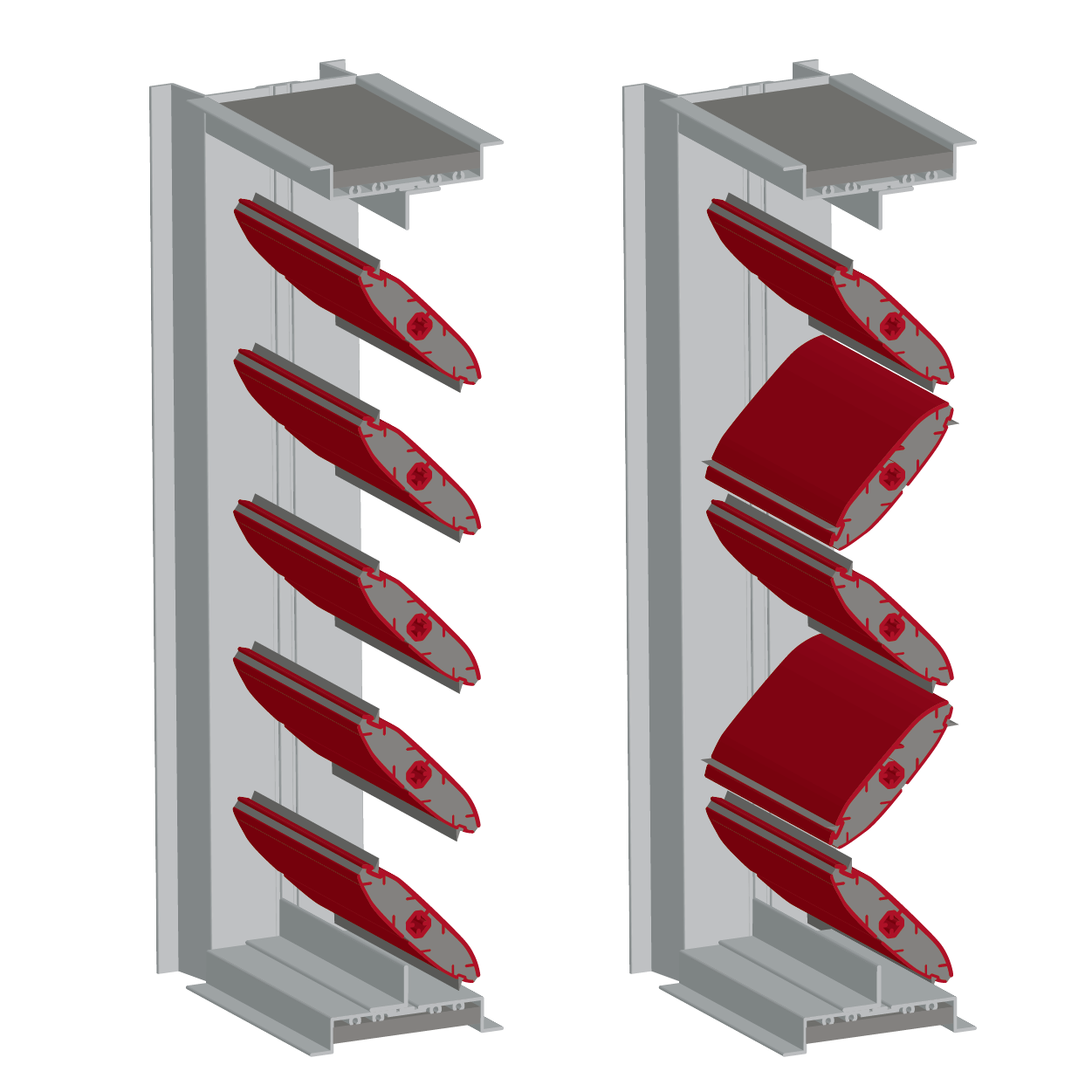

5" Deep Ultra Low Leak Insulated Control Damper

Arrow - AFDTI-25-4-I

ITAB4I

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

ITABI

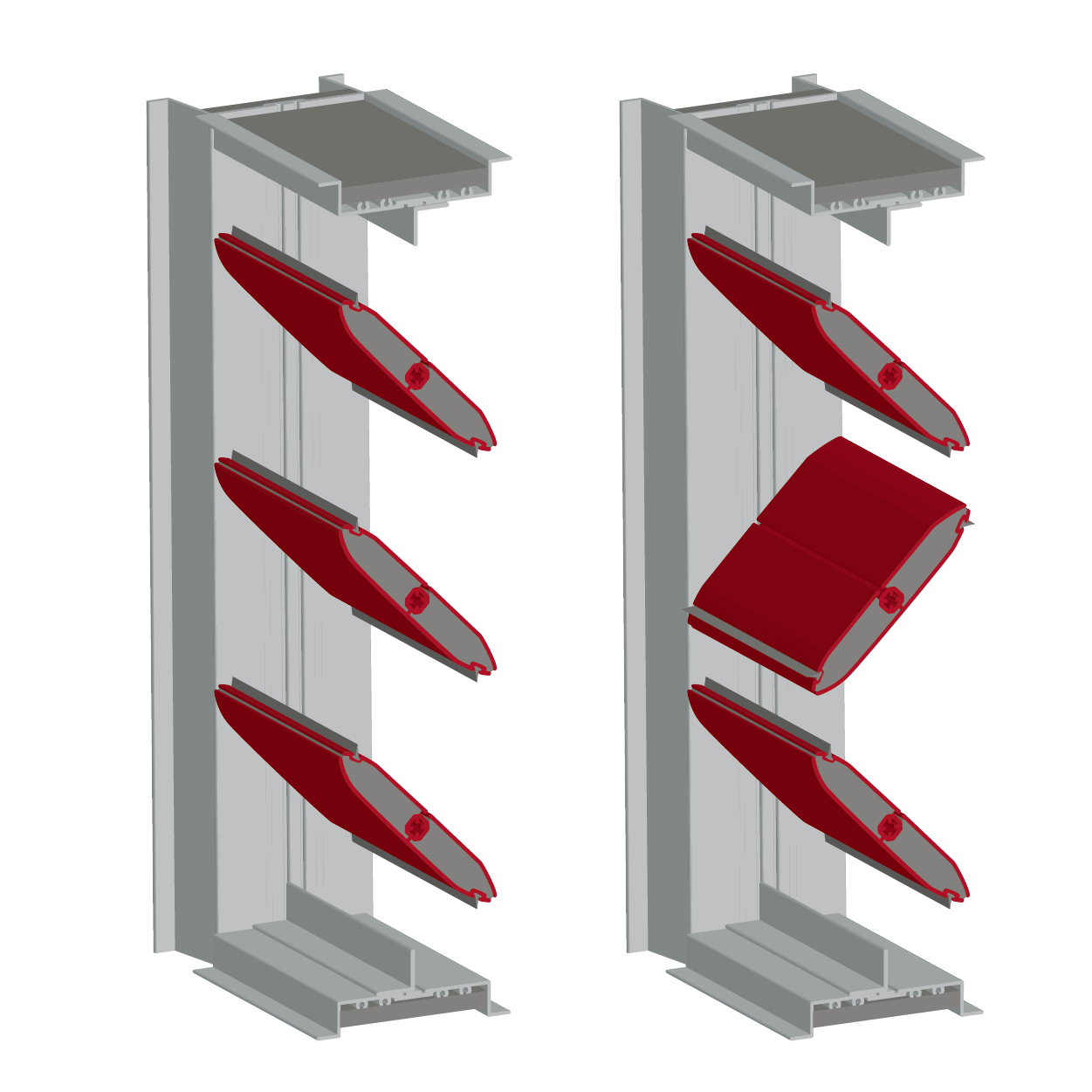

5" Deep Ultra Low Leak 6" Airfoil Control Damper

Arrow - AFDTI-25I

ITABI

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

ITAF

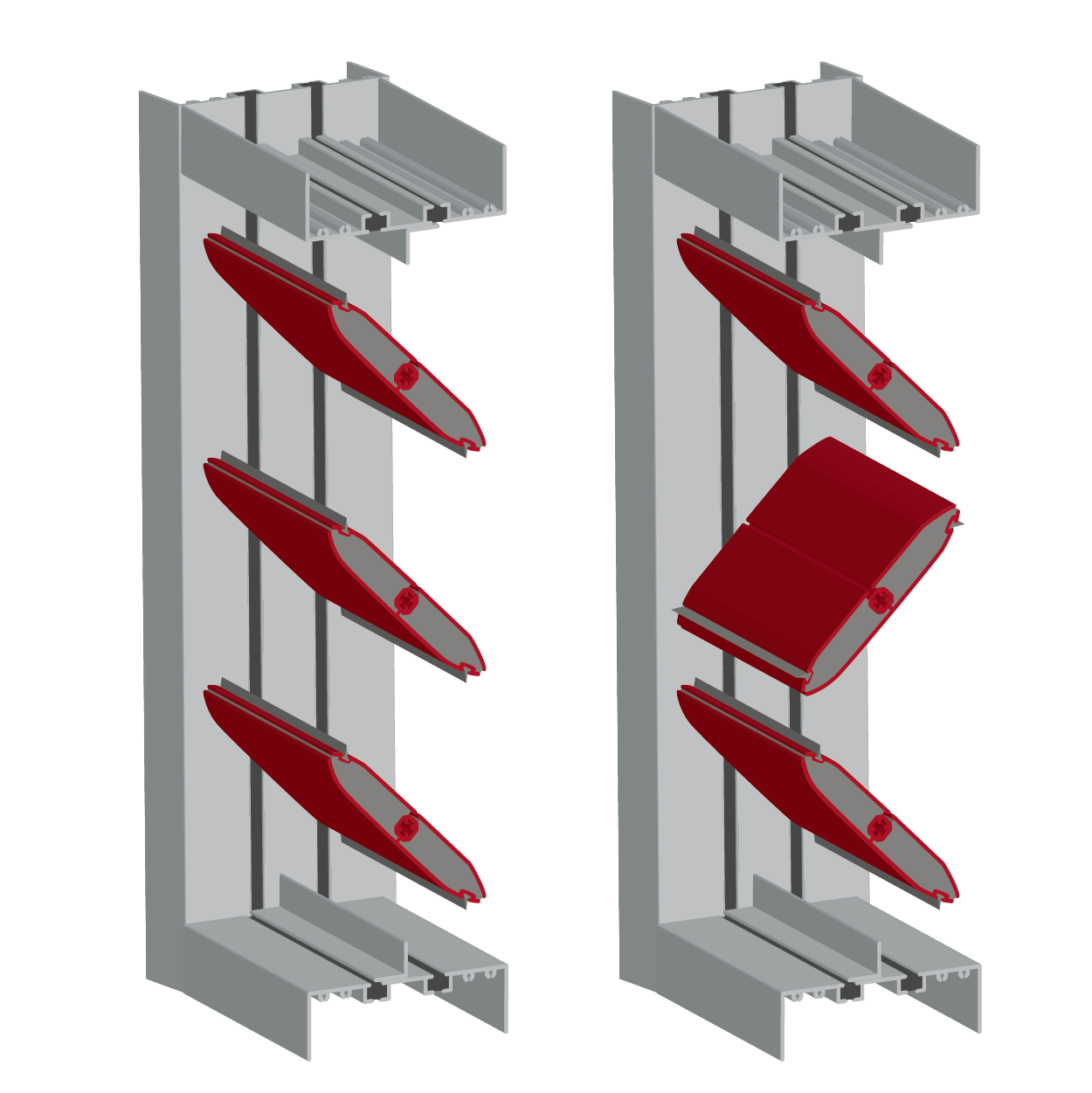

5" Deep Ultra Low Leak Thermal Break Airfoil Control Damper

Arrow - AFDTI-25LT

ITAF

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Action: Parallel / Opposed
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -70 °F to 200 °F
More Info

ITAF4

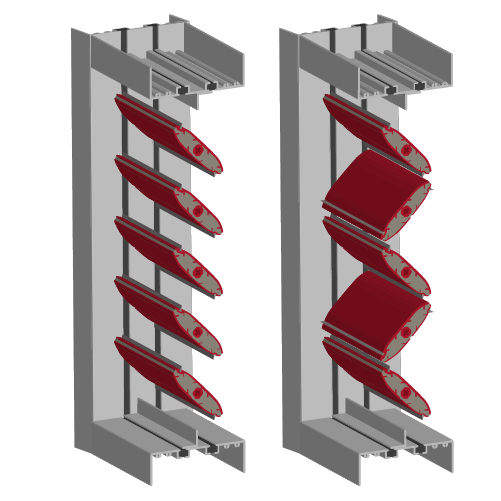

5" Deep Ultra Low Leak Thermal Break 4" Airfoil Blade Control Damper

Arrow - AFDTI-25LT-4

ITAF4

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Action: Parallel / Opposed
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -70 °F to 200 °F
More Info

MAF

2" Deep Single Blade Aluminum Damper

Arrow - SB28

MAF

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

MGG

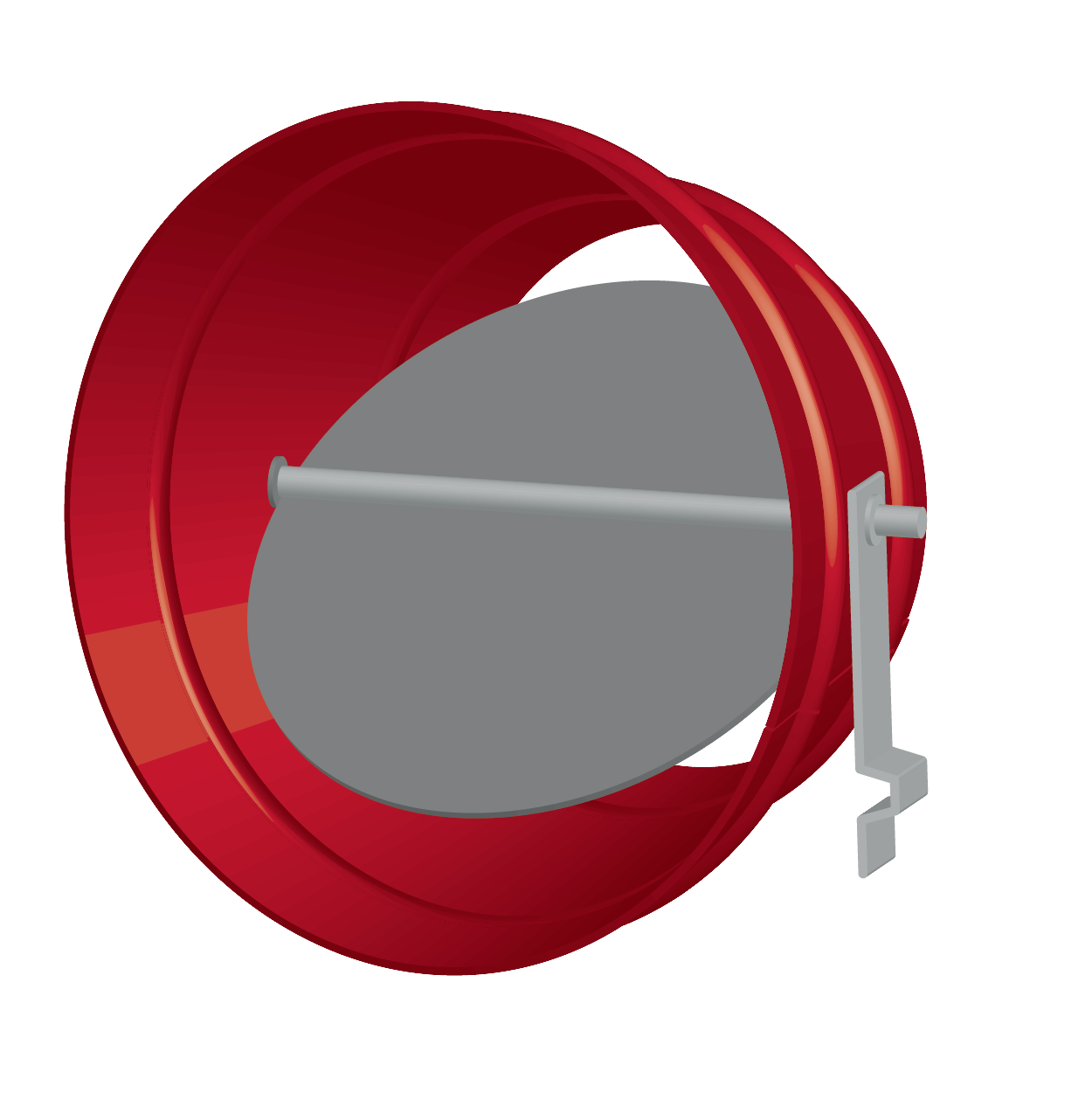

Round Single Blade Volume Control Damper

Arrow - 200VCRD

MGG

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info
Cesco - Logo

Building HVAC louvers and dampers since 1961. Cesco Products offers AMCA-rated louvers, control dampers, and UL-classified Life Safety dampers. Choose an HVAC brand with a history of distinction.

Contact Us

  • 450 Riverside Drive
    Wyalusing, PA 18853
  • p : (570) 746-1888
  • f : (570) 746-9286
  • Contact

Useful links

Mestek, Inc. © Copyright 2026. All Rights Reserved. | Purchase Terms | Terms & Conditions | Terms of Use
