Balancing Dampers

Alleviate drafts and cold/warm spots in your building. Balancing dampers maintain even air pressure across your duct. For smooth and efficient airflow.

Products 7

Products

354

6" to 8" Deep Double Deck Multi-Zone Damper

354

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

More Info

BGO

5.5" Deep Single Thickness Blade Balancing Damper

BGO

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

More Info

BGP

5.5" Deep Single Thickness Blade Balancing Damper

BGP

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

More Info

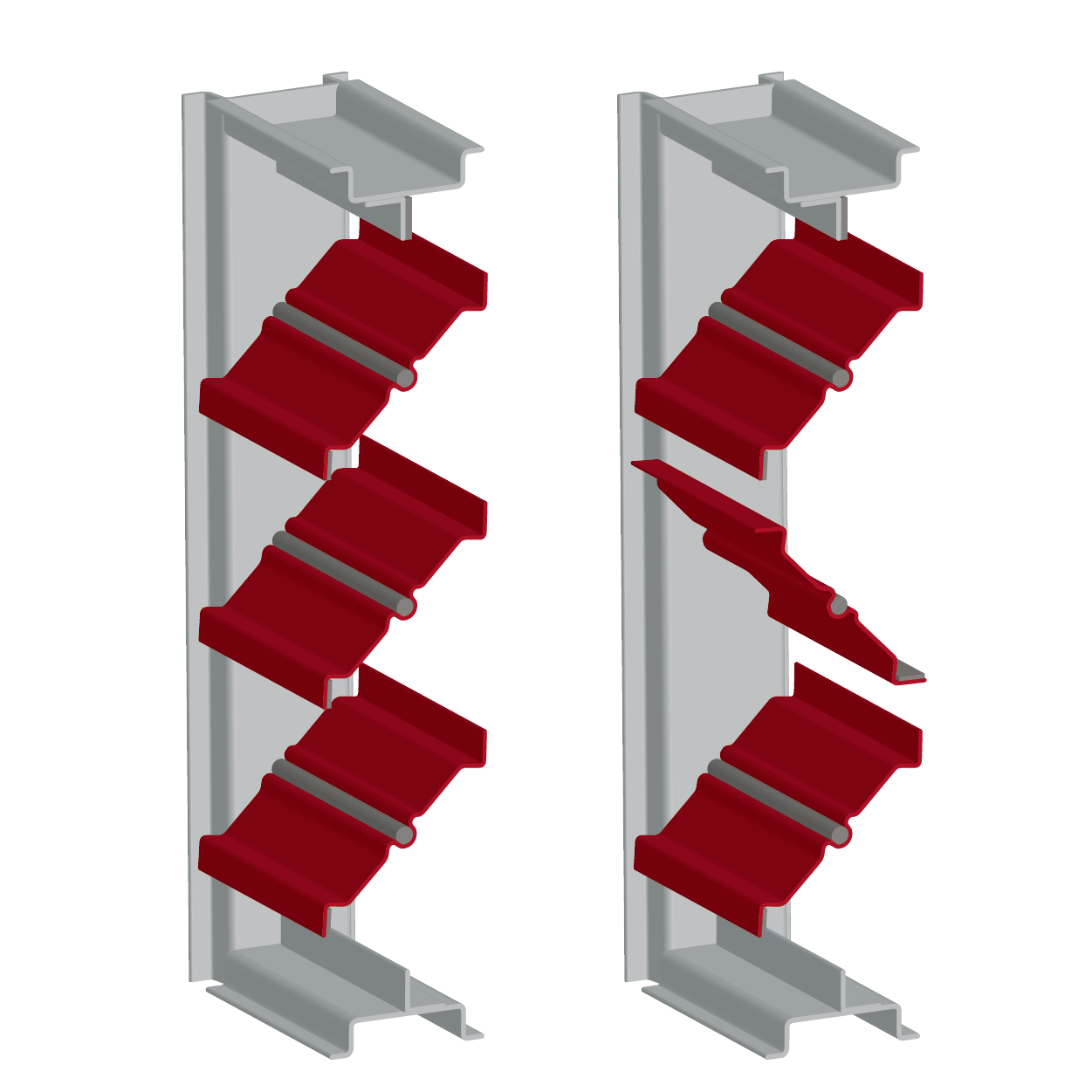

C1770

4" Deep Single Thickness Blade Steel Control Damper

C1770

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

More Info

MAF

2" Deep Single Blade Aluminum Damper

MAF

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Single
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

More Info

MGF

4" Deep Single Blade Volume Control Balancing Damper

MGF

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

356

10" Deep Triple Deck Multi-Zone Damper

356

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F
